Front Mode Control Motor Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Release the lock (A), then remove the motor lever (B) from the mode control motor (C).
NOTE: Before installing the front mode control motor, plug in the 7P connector, and set the HVAC control mode to VENT. Check that the motor output shaft is lined up as indicated (D).

Fig 1: Releasing Motor Lever Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

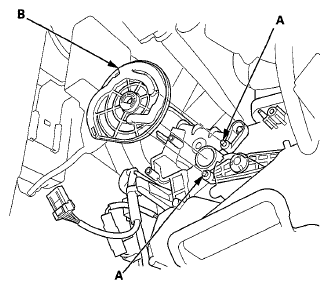

Align the position of the damper lever pins (A), then install the motor lever (B).

Fig 2: Identifying Damper Lever Pins And Motor Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.

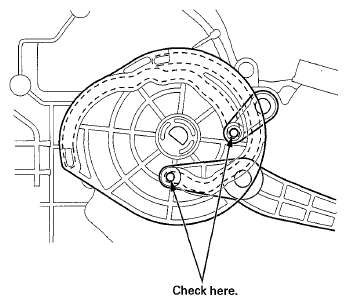

Make sure the damper lever pins in the motor lever are visible through the holes.

Fig 3: Identifying Damper Lever Pins Checking Positions
Courtesy of AMERICAN HONDA MOTOR CO., INC.

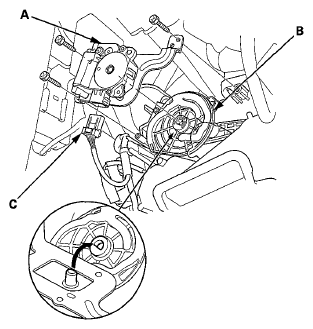

Install the front mode control motor (A) while holding the motor lever (B), then connect the 7P connector (C).

Fig 4: Installing Front Mode Control Motor While Holding Motor Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the headlight leveling control unit (see HEADLIGHT LEVELING CONTROL UNIT INPUT TEST/REPLACEMENT ).
After installation, make sure the motor runs smoothly.
