Front Mode Control Motor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Set the HVAC control to the VENT position before removing the motor.

Fig 1: Identifying HVAC Control VENT Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the headlight leveling control unit (see HEADLIGHT LEVELING CONTROL UNIT INPUT TEST/REPLACEMENT ).
Disconnect the 7P connector (A) from the front mode control motor (B), then remove the self-tapping screws and the front mode control motor from the heater unit.

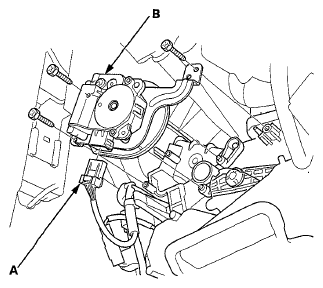

Fig 2: Identifying Front Mode Control Motor With Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
