Recirculation Control Motor Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

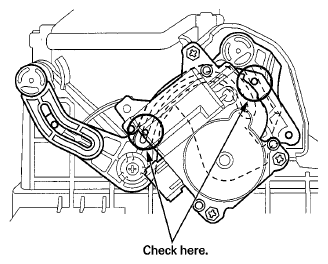

  1. Make sure the damper lever pins in the motor lever are visible through the holes.
    Fig 1: Identifying Damper Lever Pins Checking Position
    G06968245Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. While holding the recirculation control motor (A), install the self-tapping screws.
    Fig 2: Identifying Recirculation Control Motor
    G06968246Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the blower unit (see BLOWER UNIT REMOVAL/INSTALLATION  ).
  4. After installation, make sure the motor runs smoothly.
