Engine Compartment

Fig 1: Identifying Relay And Control Unit Components Locations (1 Of 2)
G05526471Courtesy of AMERICAN HONDA MOTOR CO., INC.

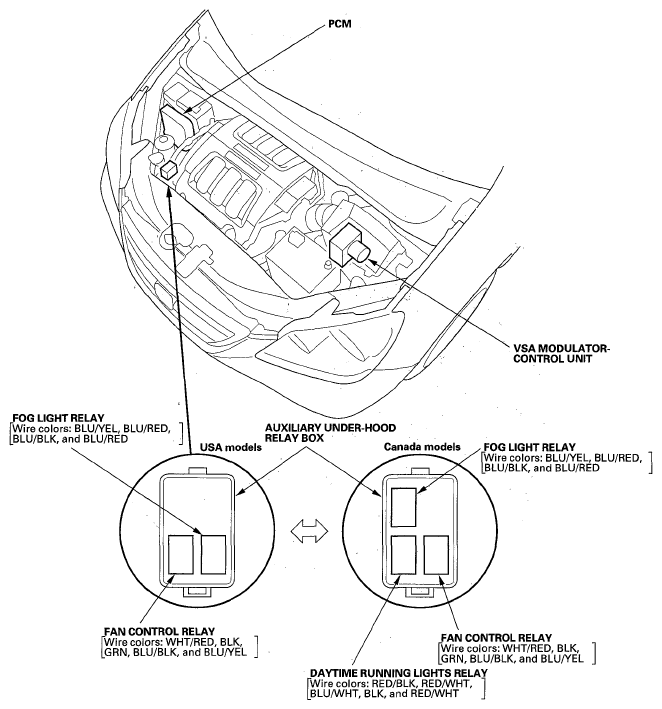

Fig 2: Identifying Relay And Control Unit Components Locations (2 Of 2)
G05526472Courtesy of AMERICAN HONDA MOTOR CO., INC.
