Rocker Arm Oil Pressure Sensor Removal/Installation

Remove the engine cover.
Disconnect the rocker arm oil pressure sensor 3P connector (A).

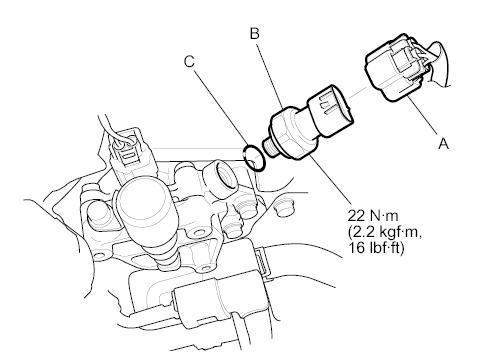

Fig 1: Rocker Arm Oil Pressure Sensor Removal/Installation With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil pressure sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
