Park Pin Switch Test
- Remove the driver's side dashboard lower cover.

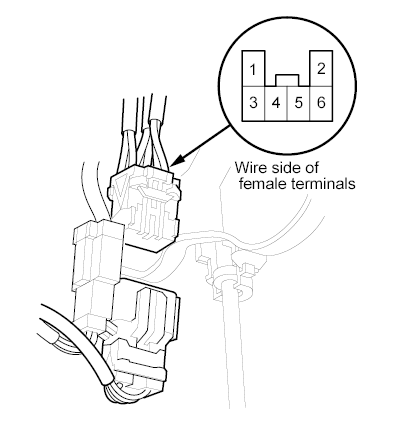

- Disconnect the D3 switch/park pin switch/A/T gear position indicator panel light harness connector .
- Check for continuity between D3 switch/park pin switch/A/T gear position indicator panel light harness connector terminals No. 2 and No. 6 while the shift lever is in P, and when the shift lever out of P.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- There should be no continuity when the shift lever is in P, and there should be continuity when the shift lever is in any position other than P.
- If the park pin switch is OK, connect the connector and install the driver dashboard lower cover. If the switch is faulty, replace the park pin switch (see
