MAF Sensor Replacement
MAF Sensor Replacement
J35A6 engine, J35A7 engine ('07 model)

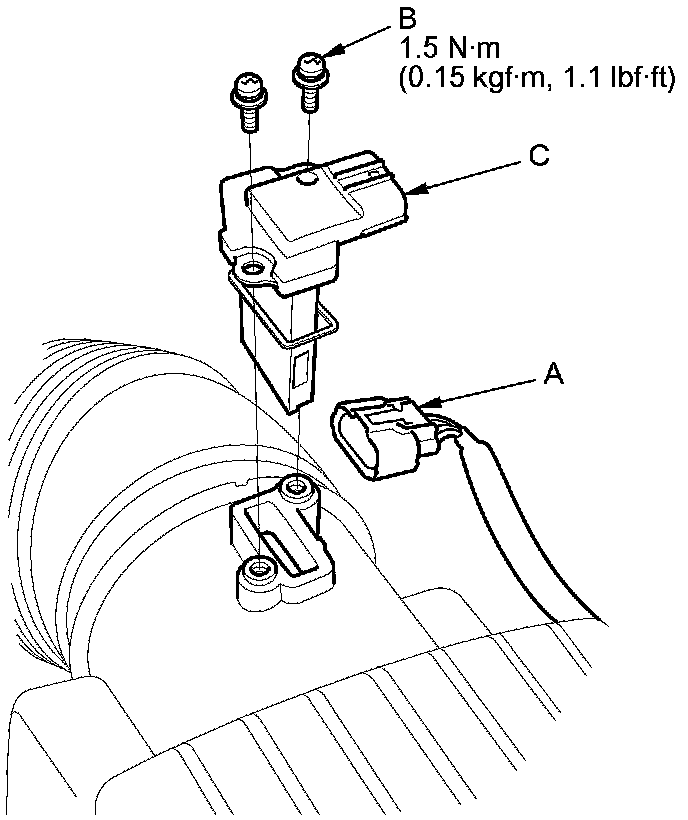

1. Disconnect the MAF sensor 5P connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor (C).
4. Install the parts in the reverse order of removal.
MAF Sensor Replacement
J35A6 engine, J35A7 engine ('07 model)
1. Disconnect the MAF sensor 5P connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor (C).
4. Install the parts in the reverse order of removal.
