MAF Sensor/IAT Sensor Replacement

MAF Sensor/IAT Sensor Replacement

J35A7 engine ('08-10 models)

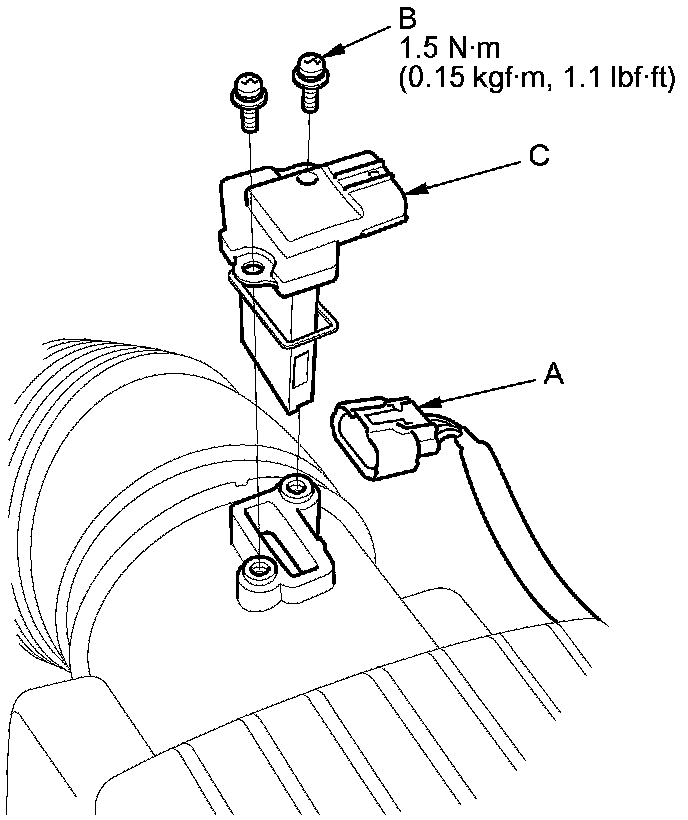

1. Disconnect the MAF sensor/IAT sensor 5P connector (A).





2. Remove the screws (B).

3. Remove the MAF sensor/IAT sensor (C).

4. Install the parts in the reverse order of removal.
