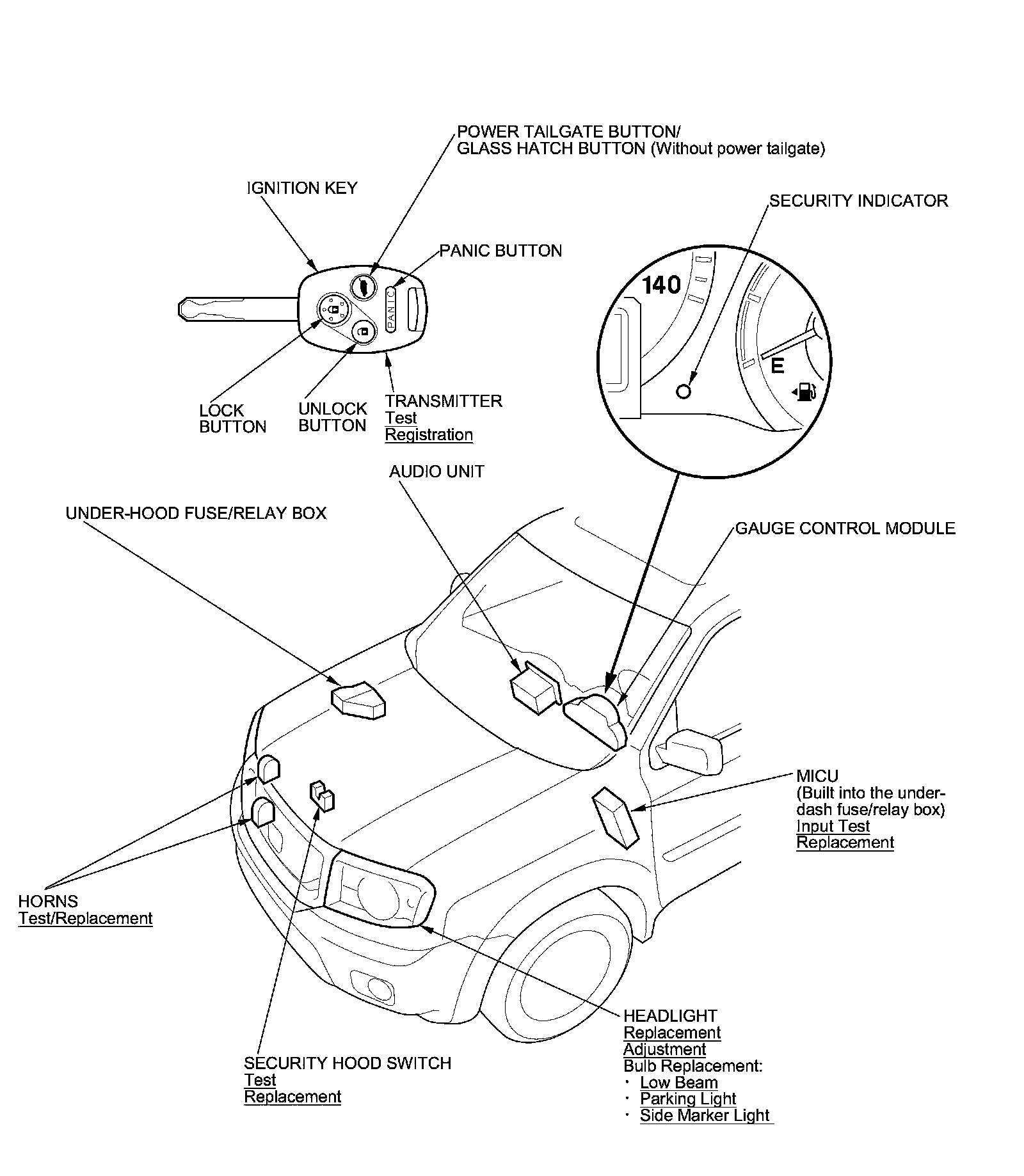

Keyless Entry Transmitter: Locations
Keyless/Power Door Locks/Security System Component Location Index
