Rocker Arm Oil Pressure Sensor Replacement

  1. Remove the rocker arm oil pressure sensor cover.

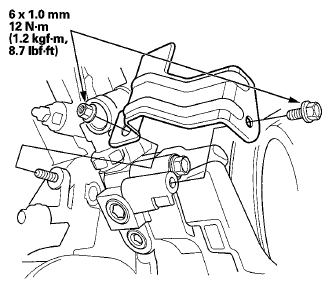

    Fig 1: Rocker Arm Oil Pressure Sensor Cover Nut & Bolt With Torque Specifications
    G05961136Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the rocker arm oil pressure sensor connector, then remove the rocker arm oil pressure sensor.
    Fig 2: Rocker Arm Oil Pressure Sensor Connector & O-Ring With Torque Specifications
    G05961137Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
  4. Install the rocker arm oil pressure sensor using a new O-ring.
  5. Connect the rocker arm oil pressure sensor connector.
  6. Install the rocker arm oil pressure sensor cover.
