DTC P15BE: CMP Sensor Signal Malfunction (ACM System): Notes

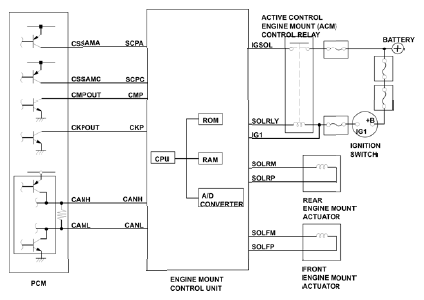

Fig 1: CMP Sensor Signal - Circuit Diagram (ACM System)
G06128554Courtesy of AMERICAN HONDA MOTOR CO., INC.
