Fuel Fill Pipe Removal/Installation
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Remove the fuel fill cap.
- Raise vehicle on lift.
- Remove the left rear wheel
- Remove the left rear fender cover (see REAR INNER FENDER COVER REPLACEMENT
)

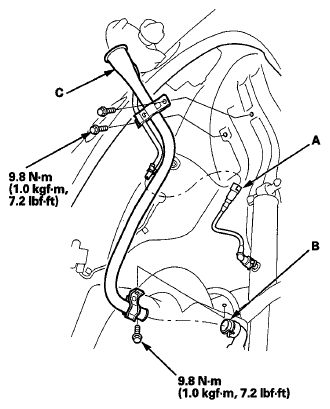

- Disconnect the quick-connector fitting (A) and the fuel fill tube (B) from the fuel fill pipe (C). Slide back the clamp, then twist the hose as you pull to avoid damaging them.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the fuel fill pipe (B).
- Install the parts in the reverse order of removal.
