Fuel Tank Unit Removal/Installation: Removal

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Remove the second row seat (see SECOND ROW SEAT REMOVAL/INSTALLATION ).
Pull the carpet (A) back out of way.

Fig 1: Pulling Carpet Back
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the access panel (A) from the floor.

Fig 2: Identifying Access Panel, Fuel Tank Unit 4P Connector & Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fitting (C) from the fuel tank unit.

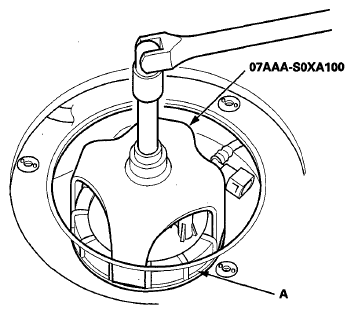

Using the fuel sender wrench, loosen the locknut (A).

Fig 3: Identifying Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the locknut (A), the locknut plate (B), and the fuel tank unit (C).

Fig 4: Identifying Locknut, Locknut Plate & Fuel Tank Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
