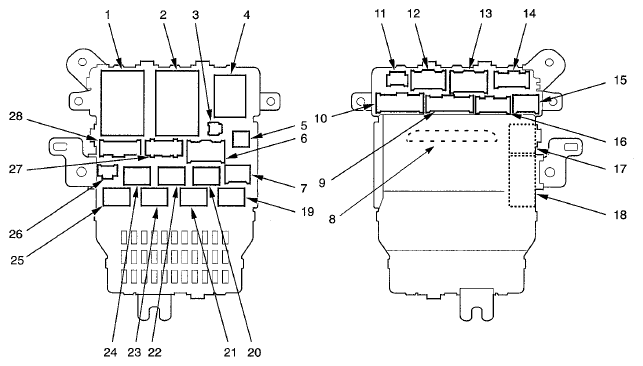

| 1 |
X |
39 |
Dashboard Wire Harness (Left Branch) (See
DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
| 2 |
N |
45 |
Dashboard Wire Harness (Left Branch) (See
DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
| 3 |
R (MES Connector) |
2 |
Dashboard Wire Harness (Left Branch) (See
DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
| 4 |
Turn Signal/Hazard Relay |
6 |
|
| 5 |
S |
2 |
Dashboard Wire Harness (Left Branch) (See
DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
| 6 |
A |
6 |
Ignition Switch Lead (See
IGNITION SWITCH LEAD
) |
| 7 |
T |
6 |
Option Connector |
| 8 |
MICU |
25 |
(Plugs directly into the fuse/relay box) |
| 9 |
E |
16 |
Floor Wire Harness (Left Branch) (See
FLOOR WIRE HARNESS (LEFT BRANCH)
) |
| 10 |
F |
14 |
Floor Wire Harness (Left Branch) (See
FLOOR WIRE HARNESS (LEFT BRANCH)
) |
| 11 |
W |
5 |
Roof Wire Harness (See
ROOF WIRE HARNESS
) |
| 12 |
C |
12 |
Right Engine Compartment Wire Harness (See
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
| 13 |
B |
6 |
Right Engine Compartment Wire Harness (See
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
| 14 |
D |
17 |
Right Engine Compartment Wire Harness (See
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
| 15 |
G |
6 |
Not Used |
| 16 |
H |
14 |
Floor Wire Harness (Left Branch) (See
FLOOR WIRE HARNESS (LEFT BRANCH)
) |
| 17 |
Q (MICU) |
14 |
Floor Wire Harness (Left Branch) (See
FLOOR WIRE HARNESS (LEFT BRANCH)
) |
| 18 |
P (MICU) |
30 |
Dashboard Wire Harness (Left Branch) (See
DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
| 19 |
Starter Cut Relay |
4 |
|
| 20 |
Rear Accessory Power Socket Relay |
4 |
|
| 21 |
A/F Sensor Relay |
4 |
|
| 22 |
PGM-FI Main Relay 1 |
4 |
|
| 23 |
Power Window Relay |
4 |
|
| 24 |
Ignition Coil Relay |
4 |
|
| 25 |
PGM-FI Main Relay 2 |
4 |
|
| 26 |
M |
3 |
MICU Service Check Connector |
| 27 |
K |
12 |
Driver's Door Sub-harness (See
DRIVER'S DOOR WIRE HARNESS
) |
| 28 |
J |
21 |
Driver's Door Sub-harness (See
DRIVER'S DOOR WIRE HARNESS
) |
