Throttle Actuator Control Module Relay Connector End View

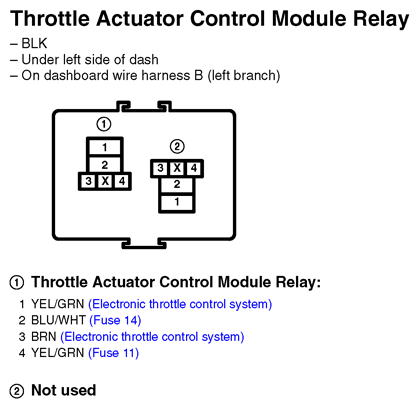

Fig 1: Throttle Actuator Control Module Relay Connector End View
G11250337Courtesy of AMERICAN HONDA MOTOR CO., INC.
