Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

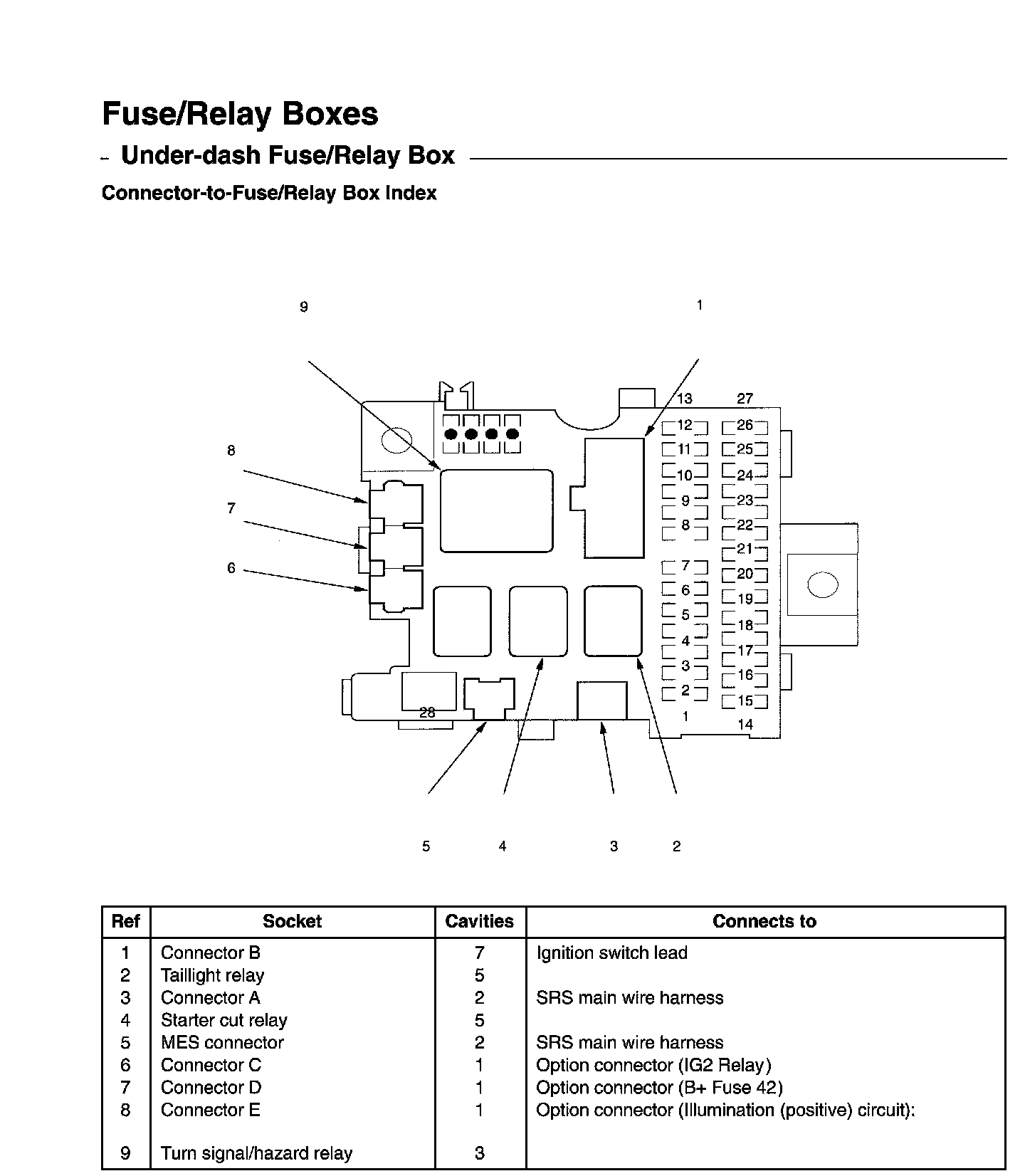

Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
