Windshield Washer Hose: Service and Repair

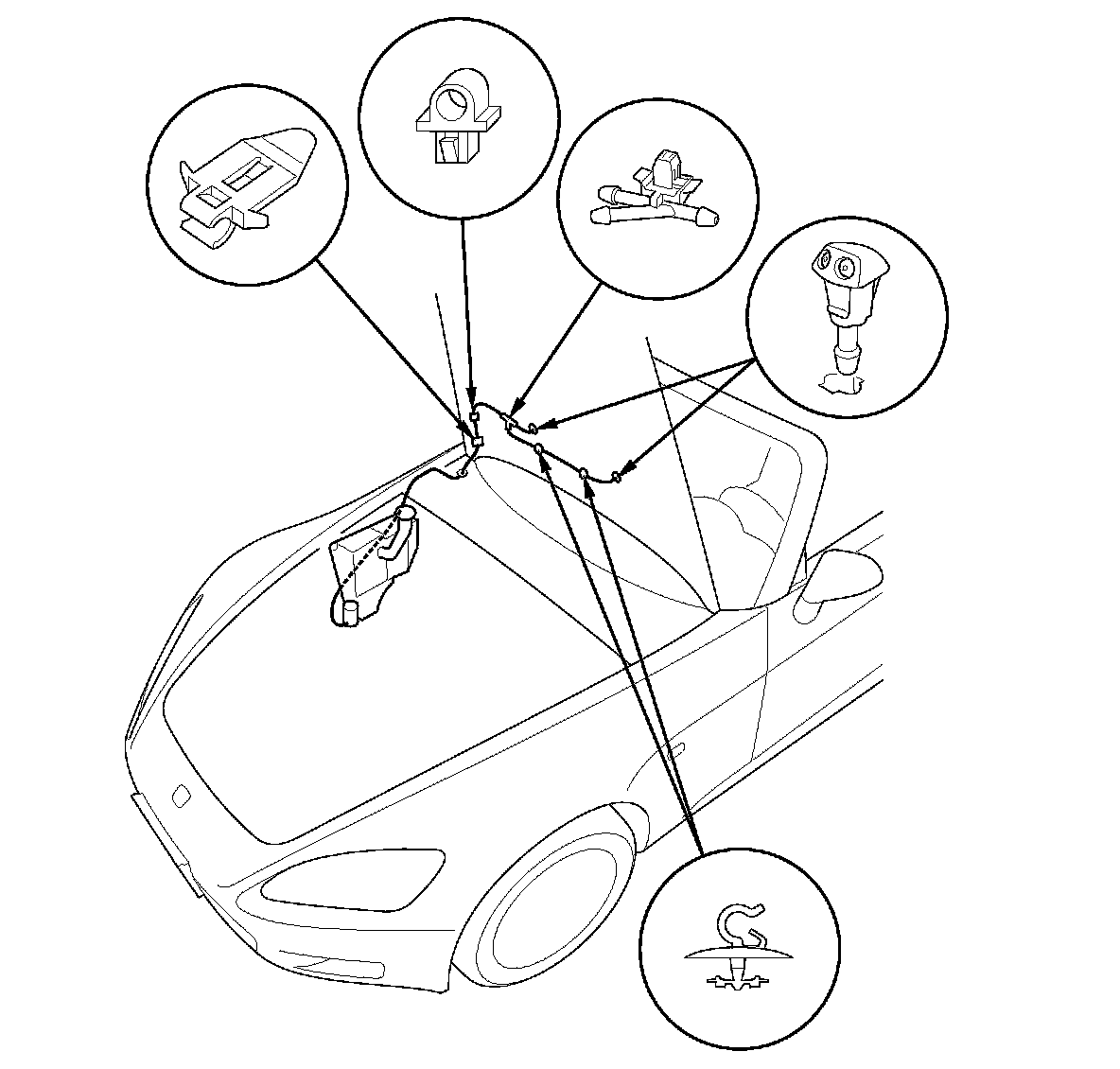

Washer Tube Replacement

1. Remove the front bumper and the right inner fender. Inner Fender Replacement

2. Remove the washer nozzles and clips, then remove the tube.

3. Install the parts in the reverse order of removal. Take care not to pinch the washer tube. Check the windshield washer operation.
