View 243 - TPMS Control Unit Connector View (TPMS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

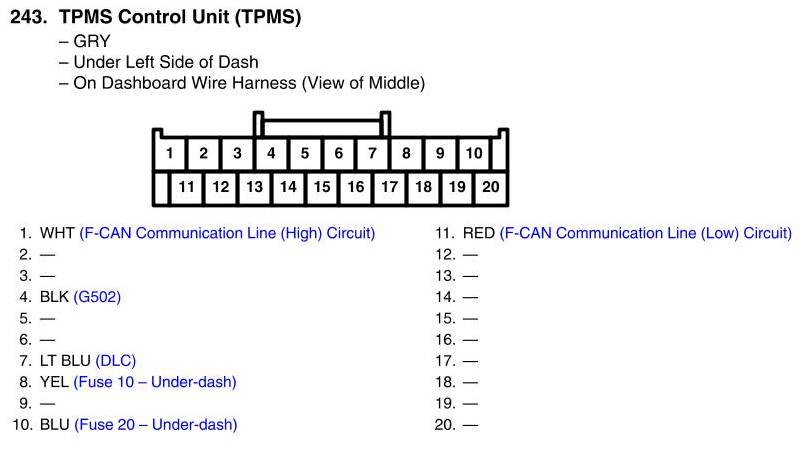

View 243 - TPMS Control Unit Connector View (TPMS)
