Fuse to Components Index




Fuse to Components Index

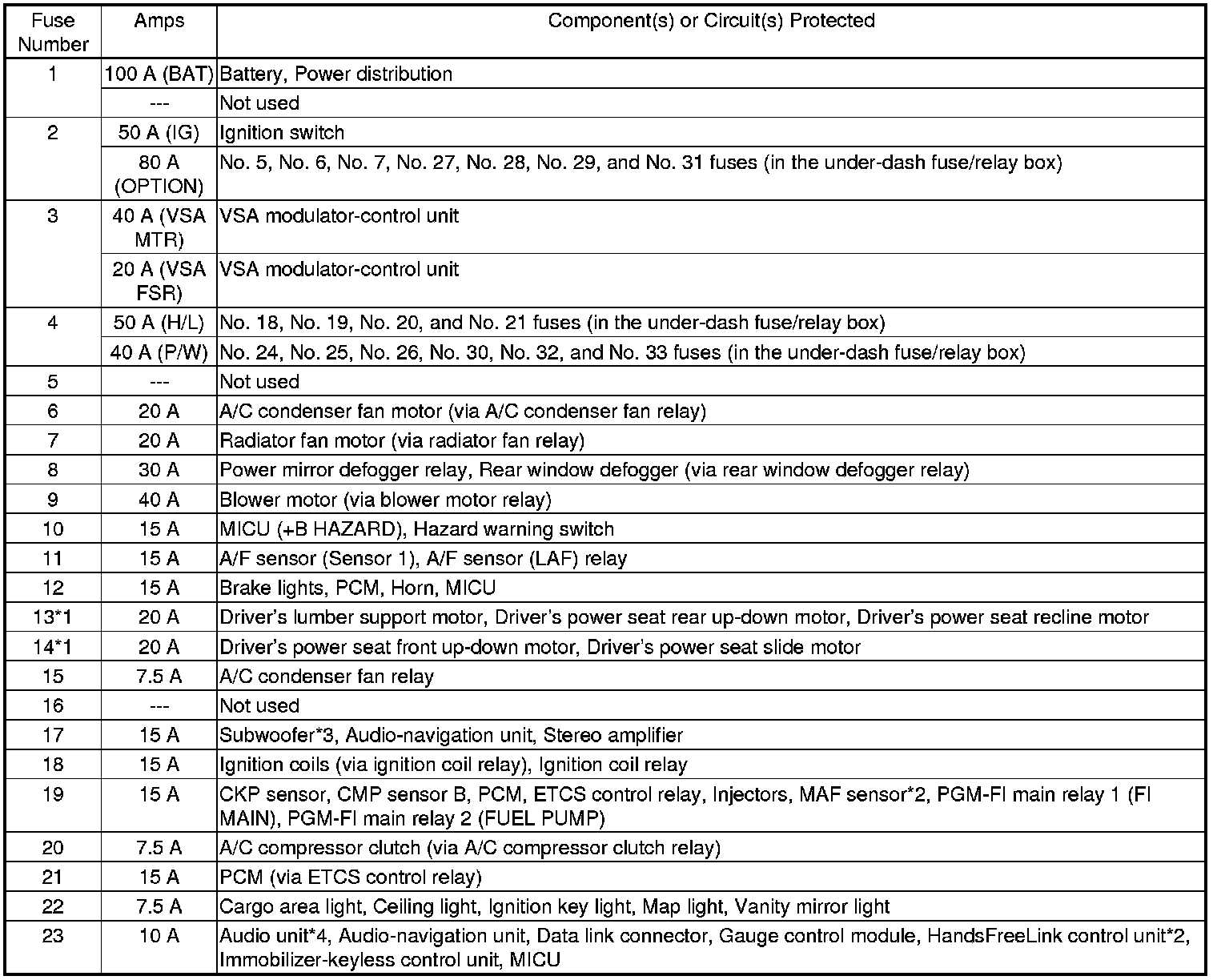

Under-Hood Fuse/Relay Box

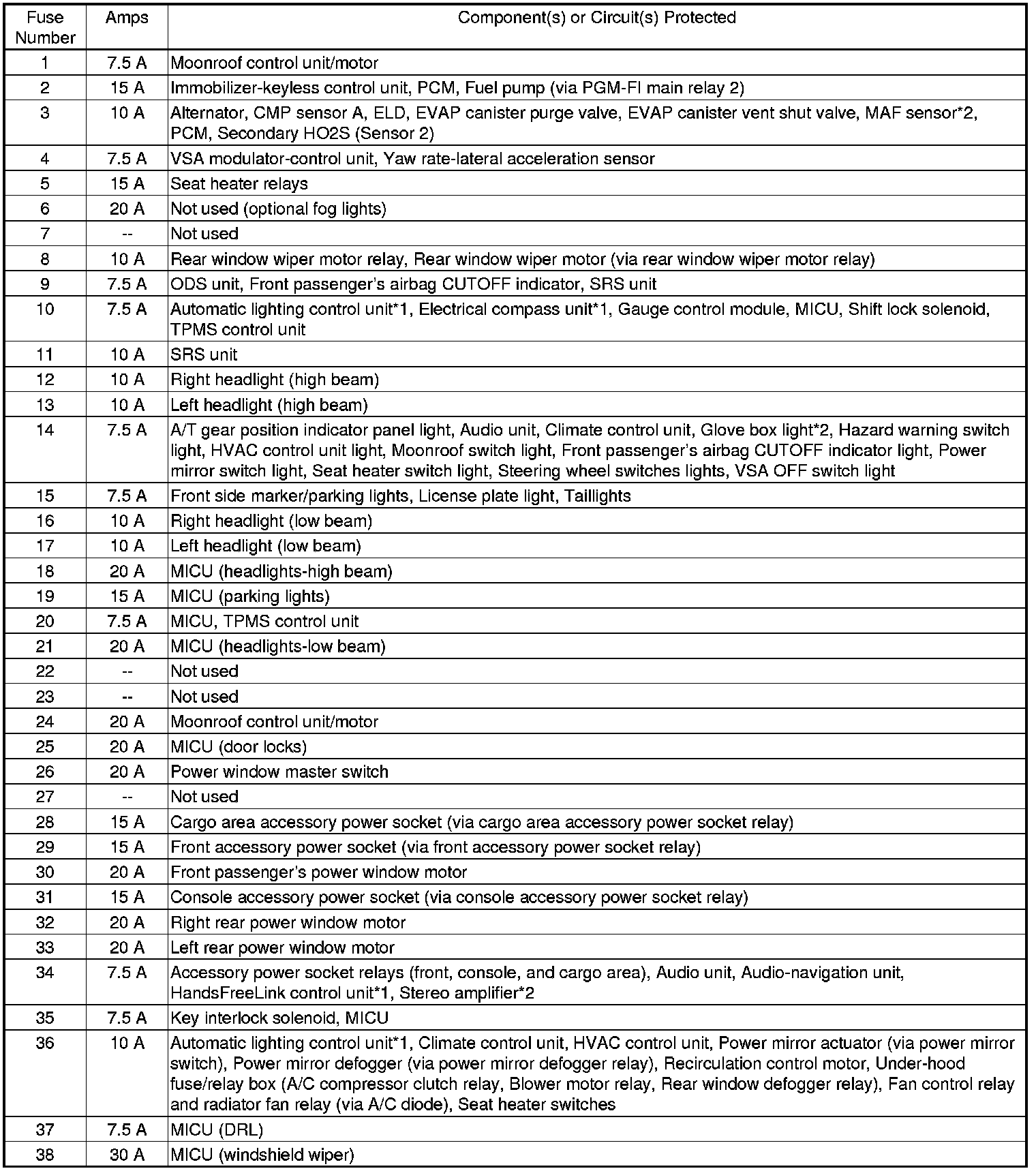

Under-Dash Fuse/Relay Box














Auxiliary Under-Dash Fuse Holder A ('10-11 models)
