Front Subframe Torque

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

After removing the subframe mounting bolts, the front subframe front stiffener mounting bolts, the rear engine mounting base bracket bolts, and the steering gearbox stiffener mounting bolts, be sure to replace them with new ones.

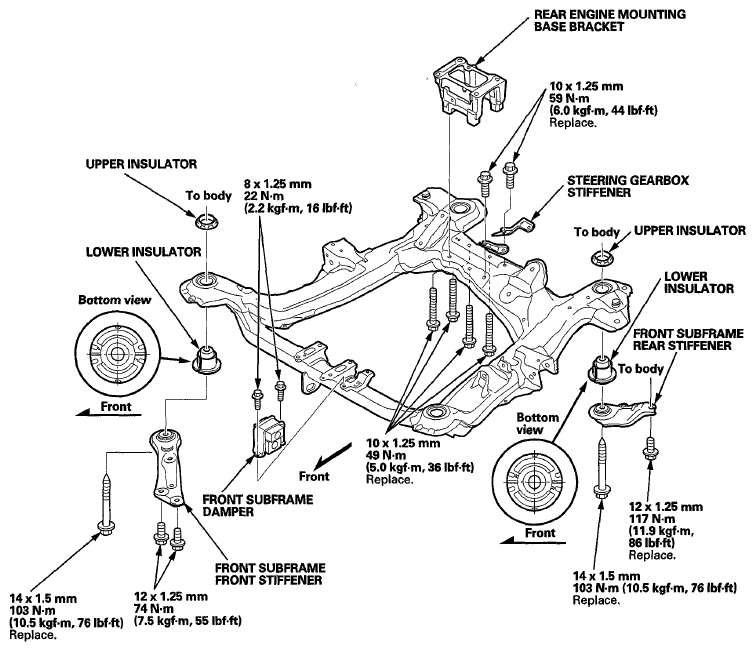

Fig 1: Identifying Front Subframe Replacement Components With Torque Specifications
G06968081Courtesy of AMERICAN HONDA MOTOR CO., INC.
