Audio-Navigation Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
Eject the discs before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.
If you are replacing the audio-navigation unit, write down the audio presets (if possible), then enter them into the new audio-navigation unit.
There are three different audio-navigation unit trim levels:
- With rear entertainment Ultrawide RES type
- With rear entertainment RES type
- Without rear entertainment
  If you are substituting a known-good audio-navigation unit (with HDD), you must substitute the same trim level. For example, if the vehicle has rear entertainment Ultrawide RES type, use a known-good audio-navigation unit for vehicles with rear entertainment Ultrawide RES type. If you use the wrong audio-navigation unit, it may cause a diagnosis error.
If the audio-navigation unit is replaced or disconnected, a Map Matching must be done (see MAP MATCHING ).
Make sure you have the 5-digit anti-theft code.

Remove these items:
- Center middle panel (see INSTRUMENT VISOR REMOVAL/INSTALLATION )
- Passenger's middle panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION )
- Center panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION )
- Center lower console (see RADIO POCKET REMOVAL/INSTALLATION )
Remove the bolts (A) and bolts (B), then pull the audio-navigation switch panel (C) out.

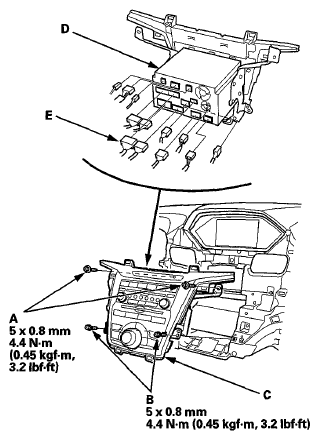

Fig 1: Locating Bolts And Audio-Navigation Switch Panel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors and remove the audio-navigation unit (D).
NOTE: There is a lever lock on connector A (E) (see LEVER-LOCKED CONNECTOR ).
Remove the bolts (A) and the brackets (B).

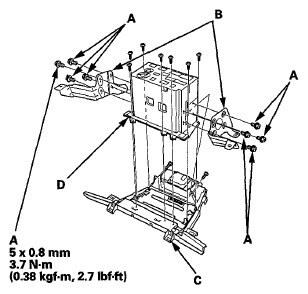

Fig 2: Locating Bolts, Brackets, Audio-Navigation Switch Panel And Audio-Navigation Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, then remove the audio-navigation switch panel (C) from the audio-navigation unit (D).
NOTE: If you are replacing the audio-navigation unit, remove the HDD (see HDD REMOVAL/INSTALLATION ).
Install the audio-navigation unit in the reverse order of removal.
NOTE: Check any official Honda service website for more service information about patches for the navigation system. Apply any prescribed patches to the new audio-navigation unit.
Park the vehicle outside, and do the GPS Initialization (see GPS INITIALIZATION ).
Give the new anti-theft code to the customer if the audio-navigation unit is replaced.
