Interface Dial Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove these items:
- Center middle panel (see INSTRUMENT VISOR REMOVAL/INSTALLATION )
- Passenger's middle panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION )
- Center panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION )
- Center lower console (see RADIO POCKET REMOVAL/INSTALLATION )
Remove the audio-navigation unit (see step 2 ).
Remove the screw and the harness cover (A).

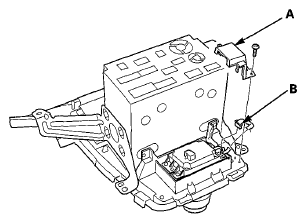

Fig 1: Locating Harness Cover And Interface Dial Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the interface dial connector (B).

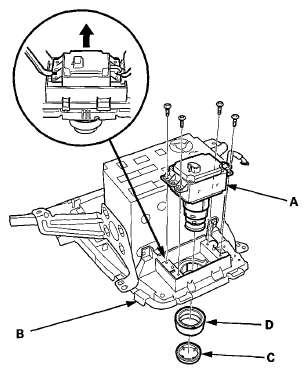

Remove the screws, then pull up the interface dial (A) a little with KTC trim tool as shown until the click sound is heard.

Fig 2: Pulling Up Interface Dial Little With KTC Trim Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the interface dial slowly and steadily by hand until the knob (C) and dial (D) pops off.
Install the interface dial in the reverse order of removal.
NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.
