Changing Camera Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When the rearview camera image is displayed, pressing the interface dial in (ENTER) sends a signal from the audio-navigation unit, to the navigation display unit using the GA-Net BUS to change the camera angle view.

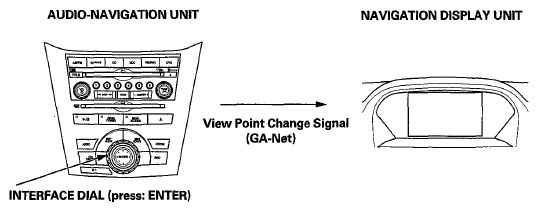

Fig 1: Audio-Navigation Unit And Navigation Display Unit Communication Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The navigation display unit recognizes the signal, and sends a signal to the rearview camera using the CAMERA BIT0 and CAMERA BIT1 signal lines to change the rearview camera view.

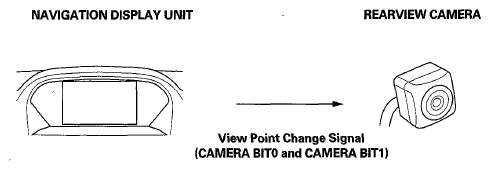

Fig 2: Navigation Display Unit And Rearview Camera Communication Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

REARVIEW CAMERA REFERENCE CHART

	Wide	Normal	Top Down
CAMERA BIT0 Signal	OFF (0 V)	ON (8 V)	OFF (0V)
CAMERA BIT1 Signal	OFF (0 V)	OFF (0 V)	ON (8 V)

The rearview camera takes the digital video using the input signal, then sends the rearview image to the navigation display unit using the NTSC lines. The rearview image appears on the navigation display unit.
