Front HFL-Navigation-ANC Microphone

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Receives voice commands and transmits them to the audio-navigation unit or HandsFreeLink control unit. The microphone unit consist of two microphones. One microphone is combined with the front active noise cancellation microphone. The microphones detects the driver's voice and passenger's voice separately.

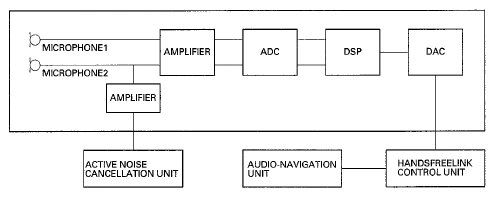

Fig 1: Microphone (HFL-Navigation-ANC) Diagram
G06971088Courtesy of AMERICAN HONDA MOTOR CO., INC.
