HFL-Navigation Voice Control Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The navigation voice control switch is combined with the HFL switch, navigation TALK/BACK commands are sent to the audio-navigation unit via the HandsFreeLink control unit.

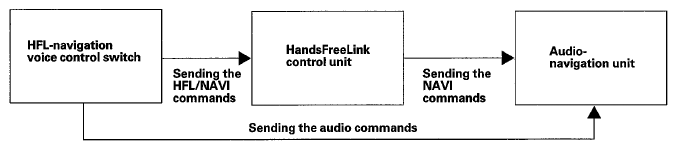

Fig 1: HFL-Navigation Voice Control Switch Diagram
G06971087Courtesy of AMERICAN HONDA MOTOR CO., INC.
