Position Detection Image with GPS Satellite

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

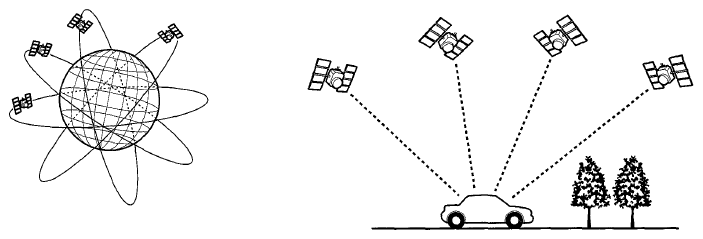

Fig 1: Position Detection Image With GPS Satellite
G06971083Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Four satellites on each of 6 orbits.
