Radio Data System-Traffic Message Channel (RDS-TMC)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

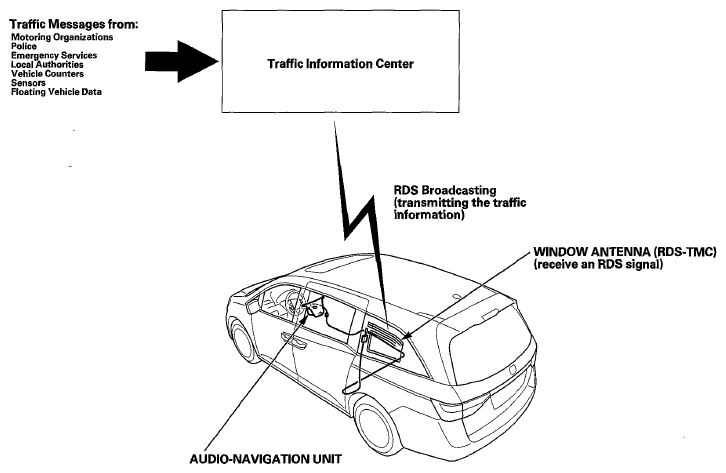

The Radio Data System-Traffic Message Channel (RDS-TMC) is a broadcast for delivering traffic and travel information to the driver. The RDS-TMC data is typically coded using the 57 kHz ± 3 kHz subcarrier on FM broadcast.
The RDS-TMC system uses a decoder in the audio-navigation unit to decode the traffic information data. It is integrated directly into a navigation system.
The traffic information is displayed with the navigation route guidance. It is used to avoid traffic jams and accidents (see the Navigation Manual for more information).
