Vehicle Speed Pulse

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed pulse is sent by the PCM. The PCM receives a signal from the output shaft (countershaft) speed sensor, then processes the signal and transmits it to the speedometer and other systems.

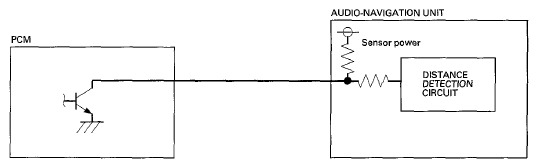

Fig 1: Vehicle Speed Pulse Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
