Detailed Information & Setting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

These sections allow you to run a specific diagnosis and allows additional setting choices for some screens that are not shown when selecting an icon from the System Links screen.

When you select the Detail Information & Setting menu, the main diagnosis menu is displayed.

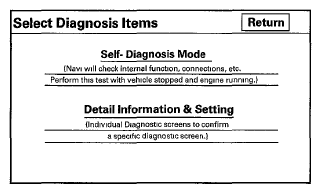

Fig 1: Navigation Screen Display - Select Diagnosis Items

Courtesy of AMERICAN HONDA MOTOR CO., INC.

After the display changes to the Diagnostic Menu, select the item you want to check, and the test begins. To return to the previous screen, select Return.

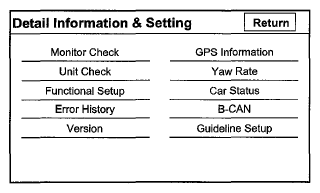

Fig 2: Navigation Screen Display - Detail Information & Setting

Courtesy of AMERICAN HONDA MOTOR CO., INC.
