GPS Detail
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

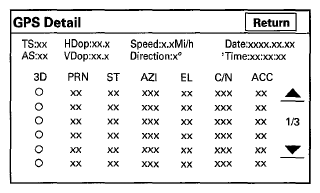

When you press and hold the DEST/ROUTE button for 2 seconds, a GPS Detail screen appears. This diagnosis displays real time incoming satellite positional data when the vehicle is outside in the open. The information shown on this screen is for factory use.
NOTE:
The data shown is an example only.
- The box TS/AS and H Dop (horizontal dilution of precision)/V Dop (vertical dilution of precision) is for factory use.
- The Speed and Direction information is updated in real time when driving.
- The Date/Time Information is the same as in Setup screen 2 Adjust Time Zone/Clock.
- If the 3D icon is shown above the yellow dots, this implies that at least four satellites are available for map positioning, and the GPS indicator on the map screen is green. See the GLOBAL POSITIONING SYSTEM detailed explanation in the System Description.
- If the row of data in the table below begins with a yellow dot, the AZI and EL fields can be used to locate each satellite on the circular GPS diagram (see prior screen).
The table of values shown below define the terms at the top of the columns in the GPS detail screen.
GPS DETAIL SCREEN REFERENCE CHART
| Column | Description | Problem indication |
|---|---|---|
| Active | Active satellites (Yellow Dot) | If 3D or 2D is missing when the vehicle is parked outside, go to GPS ICON IS WHITE OR NOT SHOWN TROUBLESHOOTING |
| PRN | The satellite ID number | |
| ST | The status: 0 = cannot view or searching, 2 = acquiring | If all 0, go to GPS ICON IS WHITE OR NOT SHOWN TROUBLESHOOTING |
| AZI | Azimuth, the angle (0-360) clockwise from north | |
| EL | Elevation from the horizon (90 deg is overhead) | |
| C/N | Receiver sensitivity | Normal signal is 49-52, no signal: 27-33 |
| ACC | Satellite accuracy | |
| ↑ 1/3 to 3/3 ↓ |
Shows view of all satellites in three screen views 1/3, 2/3 or 3/3 |
