Guideline Setup

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This diagnosis adjusts the guide line of the rearview camera image. This is for factory use only.

NOTE: Do not change the shift lever to R while this diagnosis runs.

Select view mode in the Guideline Setup menu.

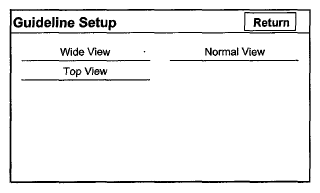

Fig 1: Diagnostic Screen Display - Guideline Setup

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the ALL Points is selected, all guide lines can be adjusted at the same time.
If the Default is selected, all guide lines can be reset for the factory settings.
For returns to the previous screen, select the CANCEL or push the CANCEL button.

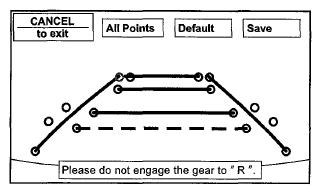

Fig 2: Diagnostic Screen Display - Guide Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Using the interface dial to adjust the point(s)

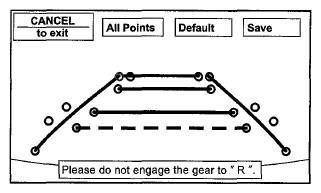

Fig 3: Diagnostic Screen Display - Guide Lines

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If you want to keep the setting, select Save. Each coordinates of the guide line is displayed.

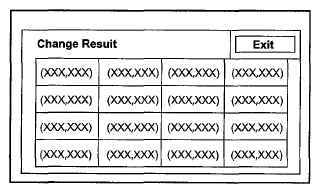

Fig 4: Diagnostic Screen Display - Change Result

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Select the Exit and the guide line adjust ends (returns to the Guideline Setup menu screen).
