DVD Mech
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Do this procedure only when directed by the factory.

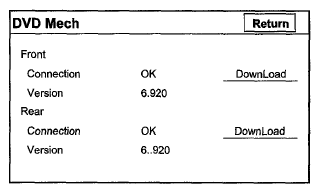

This diagnostic screen checks the audio-navigation unit internal DVD player mechanism.
- The screen shows DVD Mech version. When the audio-navigation unit can read the version number, the connection shows OK. If the version number cannot be read, the connection shows NG.
- Inserting the disc that contains a DVD Mech update program allows you to select Download. Otherwise it is grayed out.
- To update the DVD Mech, you must insert the update disc before selecting this screen. If you insert the update disc when you are on this diagnosis, the DownLoad button stays grayed out. In this case, exit the DVD Mech screen and start the diagnosis again.
