Unit Check (Quick Check): HDD
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

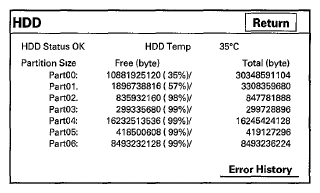

This diagnosis checks the HDD mount error and the temperature, and displays a list of total and free capacities of each partition.
Select the Error History to display the error history that occurred while reading or writing the data to the HDD.
- When the HDD Status shows OK, the connection between the HDD pins and the audio-navigation unit are good.
- When the HDD Status shows NG*, there is a connection problem between the HDD pins and the audio-navigation unit.
*: When the HDD Status shows NG, the screen does not show the free and total capacities of each partition, however, it shows the temperature.
