Hard Key
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
This diagnosis tests the interface dial, the buttons that surround it, the audio remote switch, and the HFL-navigation voice control switch. For this model, the interface dial and buttons use the serial bus for communications.

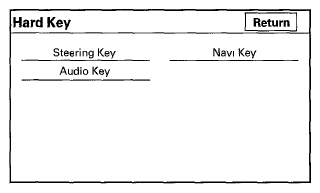

To complete the test, touch each button on the vehicle's control panel, and move the interface dial to each indicated position. As each function is tested, the corresponding button on the display should highlight.
To exit, press and hold the ENTER button.
NOTE:
You cannot use the onscreen return button to exit this function.
