Rear Camera

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This diagnosis checks whether the rearview camera is connecting to the navigation display unit.

When the connection shows NG, check the connection between the rearview camera and the navigation display unit.

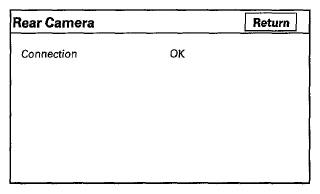

Fig 1: Diagnostic Screen Display - Rear Camera
G06971144Courtesy of AMERICAN HONDA MOTOR CO., INC.
