System Diagnostic Mode: Version

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This diagnosis displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a service bulletin. Software may be loaded from a DVD or a USB device.

Flash: Displays the version of the navigation software in memory.
HDD: Displays the version of the navigation software in the navigation HDD.
USB: If displayed, this value represents the version of the USB software in the USB device.
Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.
DSP: Displays the version of the DSP firmware.
IPL, APL, DBOOT, HDD, and APP, are all for factory use.
Model: For this model, the field should begin with TK8.

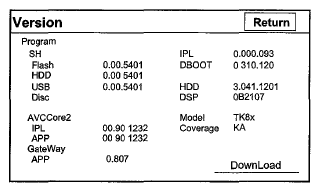

Fig 1: Diagnostic Screen Display - Software Version
Courtesy of AMERICAN HONDA MOTOR CO., INC.

If you need to download a software into the audio-navigation unit, do this:

Insert the DVD or connect the USB device in which the software is installed.
Select DownLoad in the Version menu.

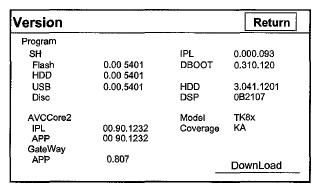

Fig 2: Diagnostic Screen Display - Software Version
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If you are loading older software into the audio-navigation unit's memory, a confirmation screen appears warning you that the version being uploaded is older than the currently loaded software.

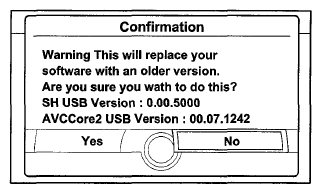

Fig 3: Diagnostic Screen Display - Confirmation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Select YES on the confirmation screen. The navigation system reboots.
Check that the navigation display shows the map properly.
