Driver's Under Dash Fuse/Relay Box
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

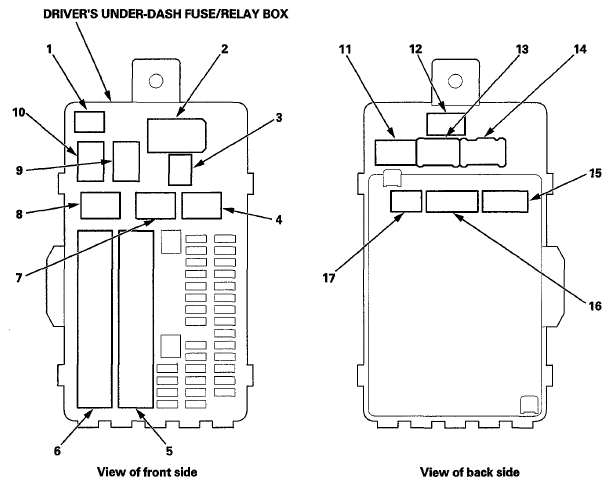

DRIVER'S UNDER DASH FUSE/RELAY BOX CONNECTOR TERMINALS CHART
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A (optional connector) | 1 | -- | Not used | |
| ACC cut relay | 4 | 5 | ||
| B | 2 | 5 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| C | 3 | -- | Not used | |
| E | 6 | 44 | Left side wire harness (left front branch) (see LEFT SIDE WIRE HARNESS (LEFT FRONT BRANCH) (L) ) | |
| F | 5 | 32 | Left engine compartment wire harness (dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) (G) ) | |
| G | 12 | 16 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| H | 11 | 13 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| IG2 cut relay | 7 | 5 | ||
| K | 13 | 8 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| M | 14 | 8 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| N | 17 | -- | Not used | |
| P | 16 | 24 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| PGM-FI main relay 2 | 8 | 4 | ||
| Q | 15 | 20 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (H) ) | |
| Starter cut relay 1 | 10 | 4 | ||
| Starter cut relay 2 | 9 | 4 |
