Main Under Hood Fuse Box
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

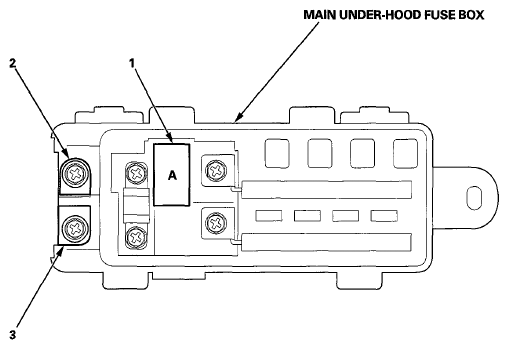

MAIN UNDER HOOD FUSE BOX CONNECTOR TERMINALS CHART
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| Main under hood fuse box connector A (electrical load detector (ELD)) | 1 | 3 | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (G) ) | |
| T1 | 3 | -- | Starter cable (see STARTER CABLE (E) ) | |
| T101 | 2 | -- | Engine wire harness (see ENGINE WIRE HARNESS (ENGINE SECTION) (D) ) |
