Passenger's Under Dash Fuse/Relay Box

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

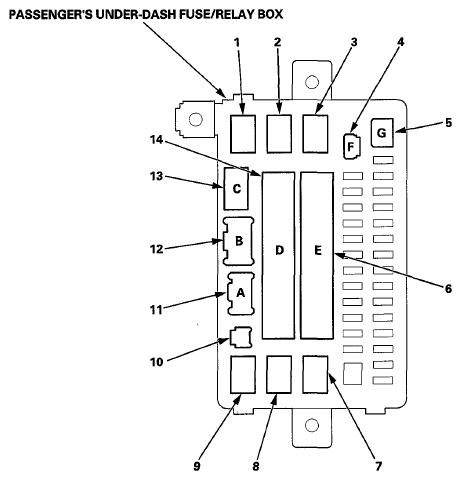

Fig 1: Identifying Passenger's Under Dash Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PASSENGER'S UNDER DASH FUSE/RELAY BOX CONNECTOR TERMINAL CHART

Socket

Ref

Terminals

Connects to

Notes

Right engine compartment wire harness (dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) (F) )

Active control engine mount (ACM) control relay

Not used

Right engine compartment wire harness (dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) (F) )

Front lower accessory power socket relay

Cargo area accessory power socket relay

Right side wire harness (right front branch) (see RIGHT SIDE WIRE HARNESS (RIGHT FRONT BRANCH) (M) )

Dashboard wire harness (view of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) (H) )

Front upper accessory power socket relay

Audio wire harness (see AUDIO WIRE HARNESS (WITH NAVIGATION) (I) )

⁽¹⁾

Not used

Right rear power window relay

Seat heater relay

⁽¹⁾	With navigation

Rear Fuse Box

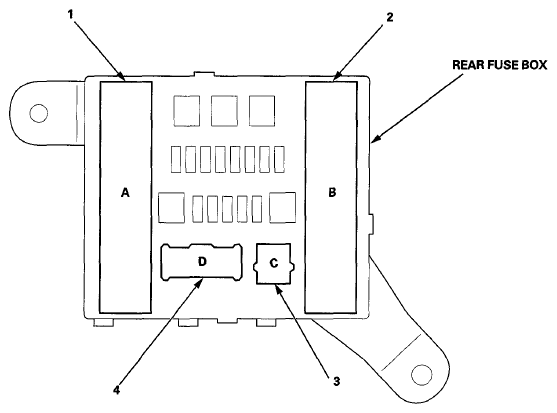

Fig 2: Identifying Rear Fuse Box Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR FUSE BOX CONNECTOR TERMINALS CHART

Socket	Ref	Terminals	Connects to
A	1	49	Rear wire harness (left rear branch) (see REAR WIRE HARNESS (N) )
B	2	36	Left side wire harness (see LEFT SIDE WIRE HARNESS (LEFT REAR BRANCH) (L) )
C	3	--	Not used
D (for trailer)	4	--	Not used
