Under Hood Fuse/Relay Box
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

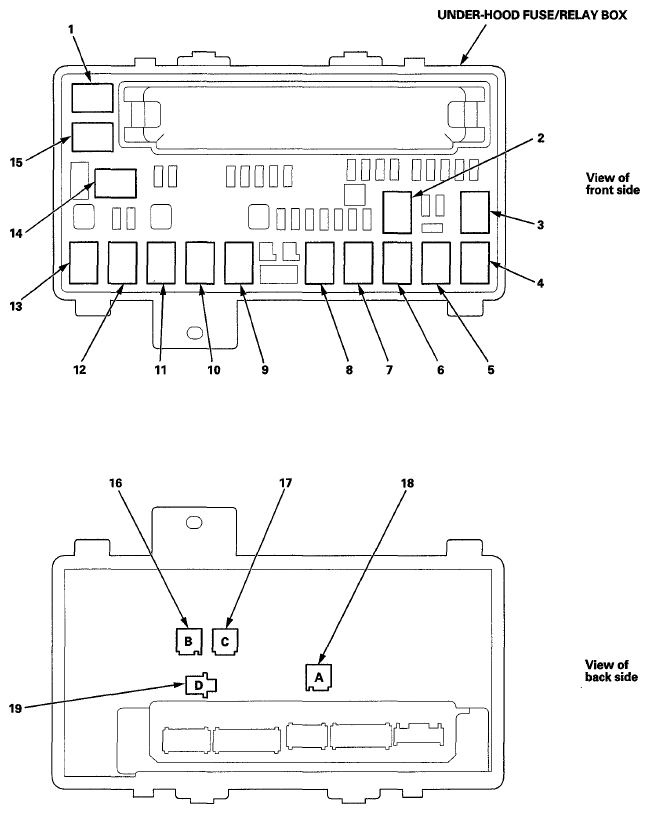

UNDER HOOD FUSE/RELAY BOX CONNECTOR TERMINALS CHART
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A/C compressor clutch relay | 15 | 4 | ||
| A/C condenser fan relay | 11 | 4 | ||
| Electronic throttle control system (ETCS) control relay | 12 | 4 | ||
| Fan control relay | 6 | 5 | ||
| Fog light relay | 9 | 4 | ||
| Headlight low relay | 2 | 4 | ||
| Horn relay | 5 | 4 | ||
| Ignition coil relay | 14 | 4 | ||
| PGM-FI main relay 1 | 7 | 4 | ||
| PGM-FI subrelay | 8 | 4 | ||
| Radiator fan relay | 13 | 4 | ||
| Rear blower motor relay | 4 | 4 | ||
| Rear window defogger relay | 1 | 4 | ||
| Taillight relay | 3 | 4 | ||
| Under hood fuse/relay box connector A | 18 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) ) | |
| Under hood fuse/relay box connector B | 16 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) ) | |
| Under hood fuse/relay box connector C | 17 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) ) | |
| Under hood fuse/relay box connector D | 19 | 2 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) ) | |
| Wiper main relay | 10 | 4 |
