Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the grommet (A), then disconnect the wheel speed sensor connector (B).

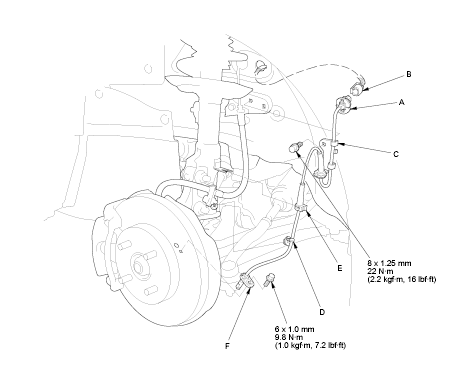

    Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications
    G00492831Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (C), the clip (D), and the stay (E).
  4. Remove the bolts and the wheel speed sensor (F).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure the grommet is installed properly.
    • Make sure there is no debris in the sensor mounting hole.
