Pinout Values and Diagnostic Parameters

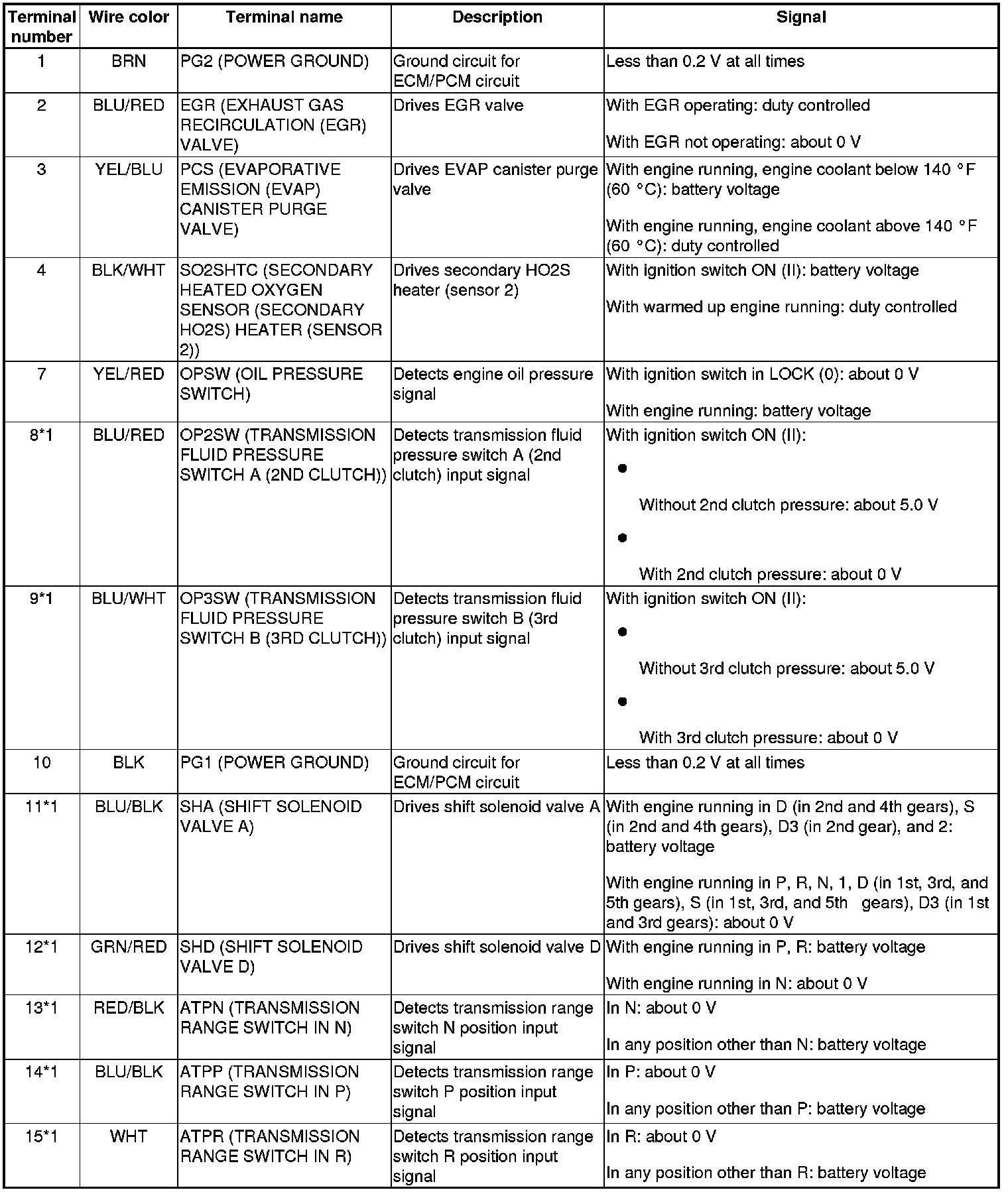

ECM/PCM Inputs and Outputs at ECM/PCM Connector A ((square)) (49P)

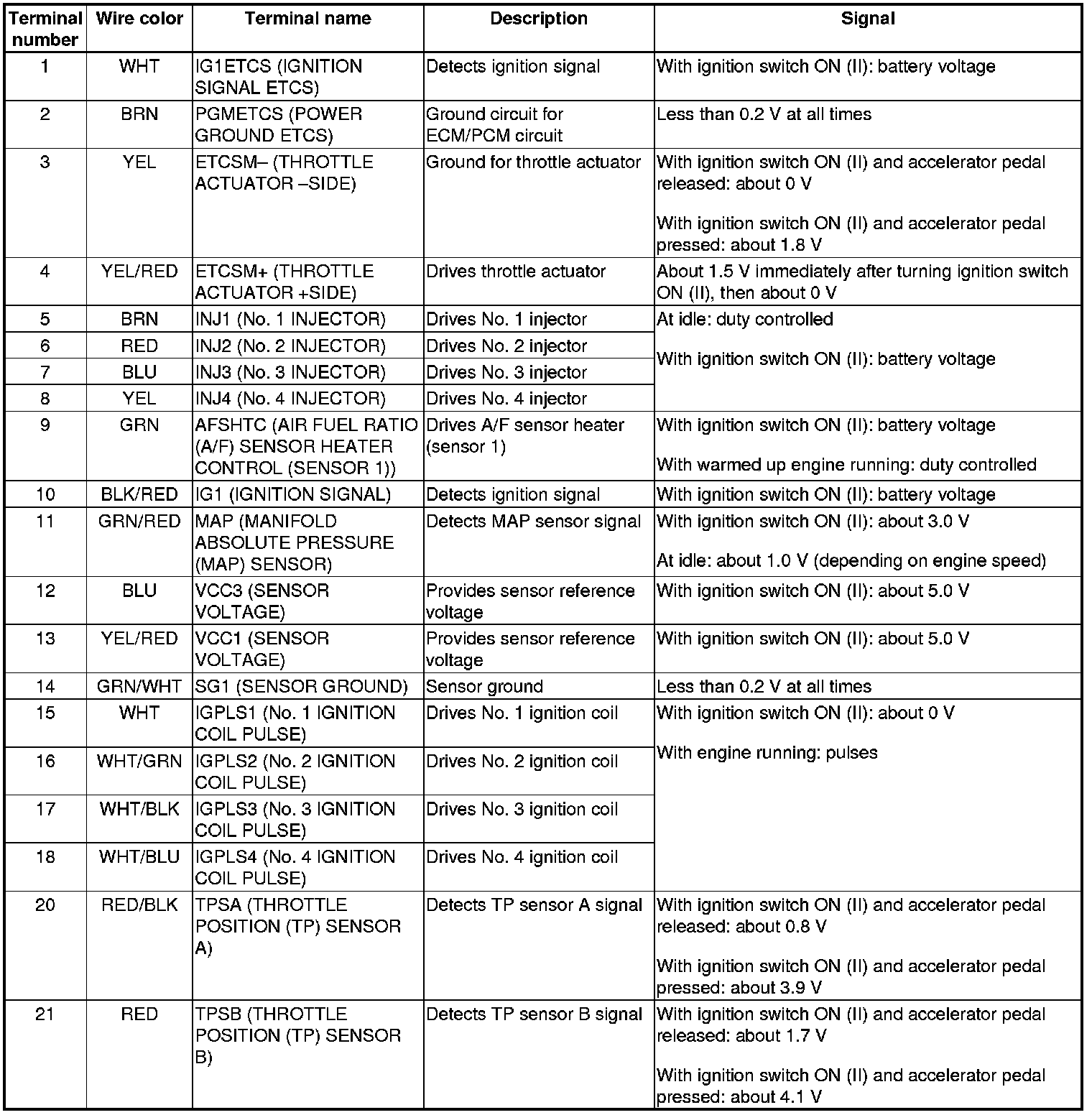

ECM/PCM Inputs and Outputs at ECM/PCM Connector A ((square)) (49P)

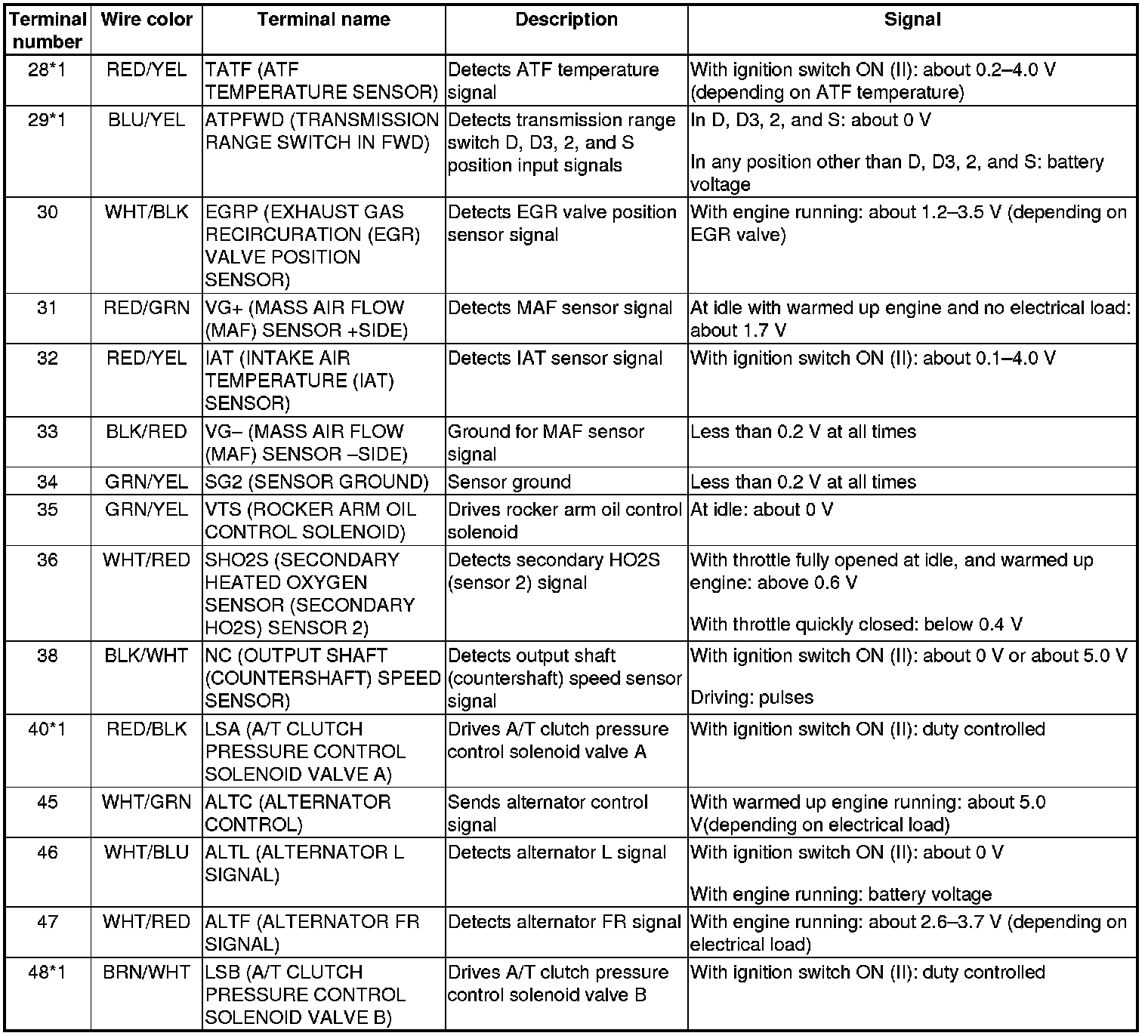

ECM/PCM Inputs and Outputs at ECM/PCM Connector A ((square)) (49P)

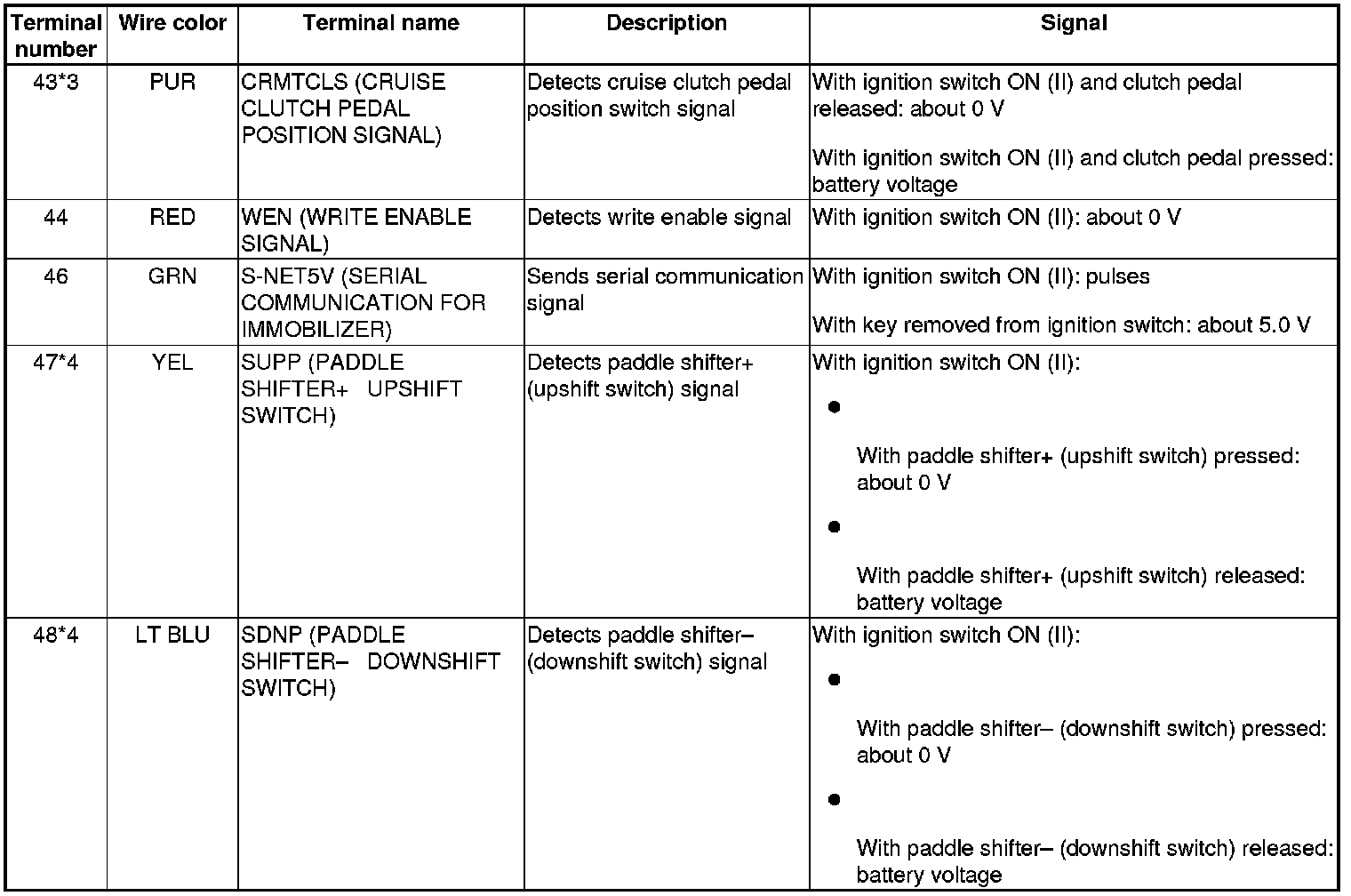

ECM/PCM Inputs and Outputs at ECM/PCM Connector B ((triangle)) (49P)

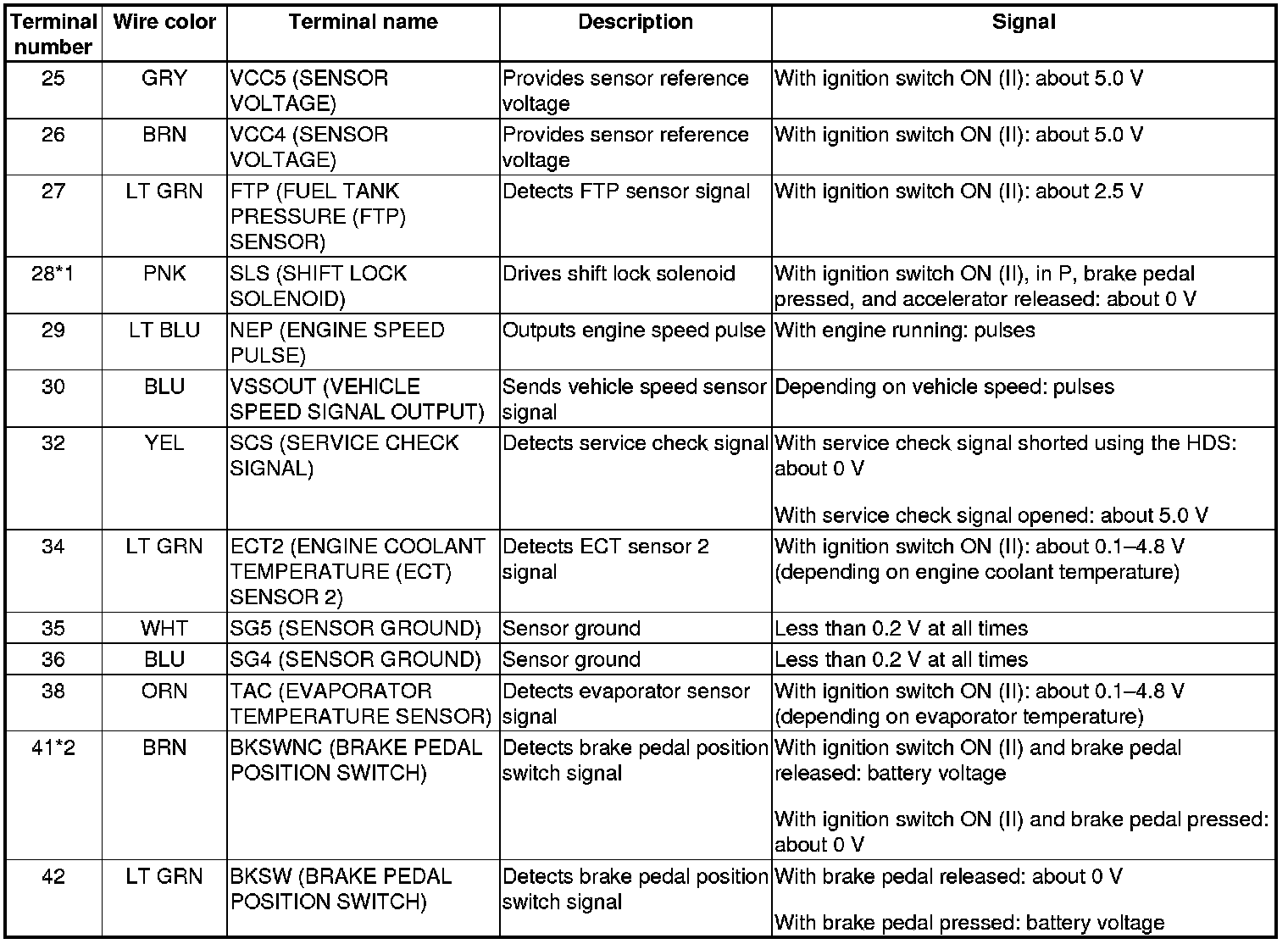

ECM/PCM Inputs and Outputs at ECM/PCM Connector B ((triangle)) (49P)

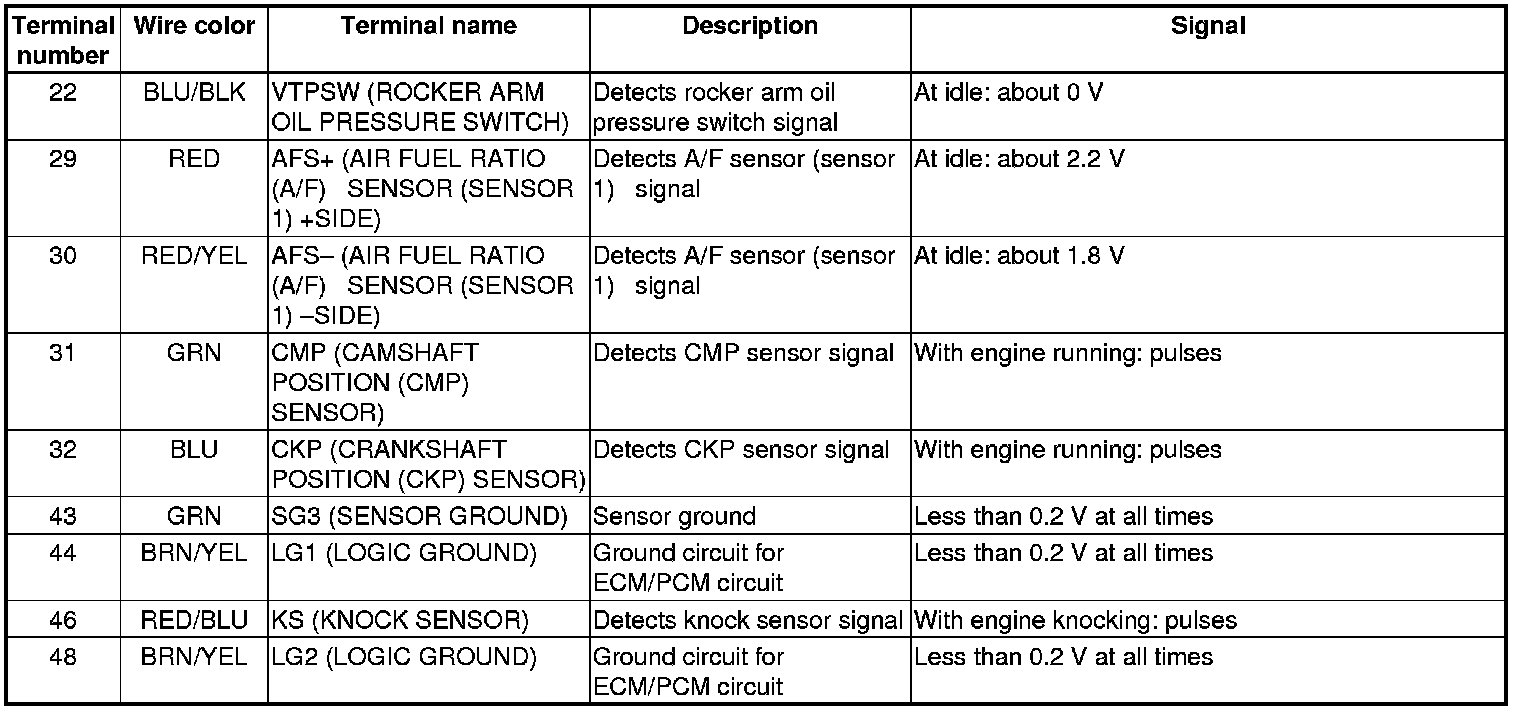

ECM/PCM Inputs and Outputs at ECM/PCM Connector B ((triangle)) (49P)

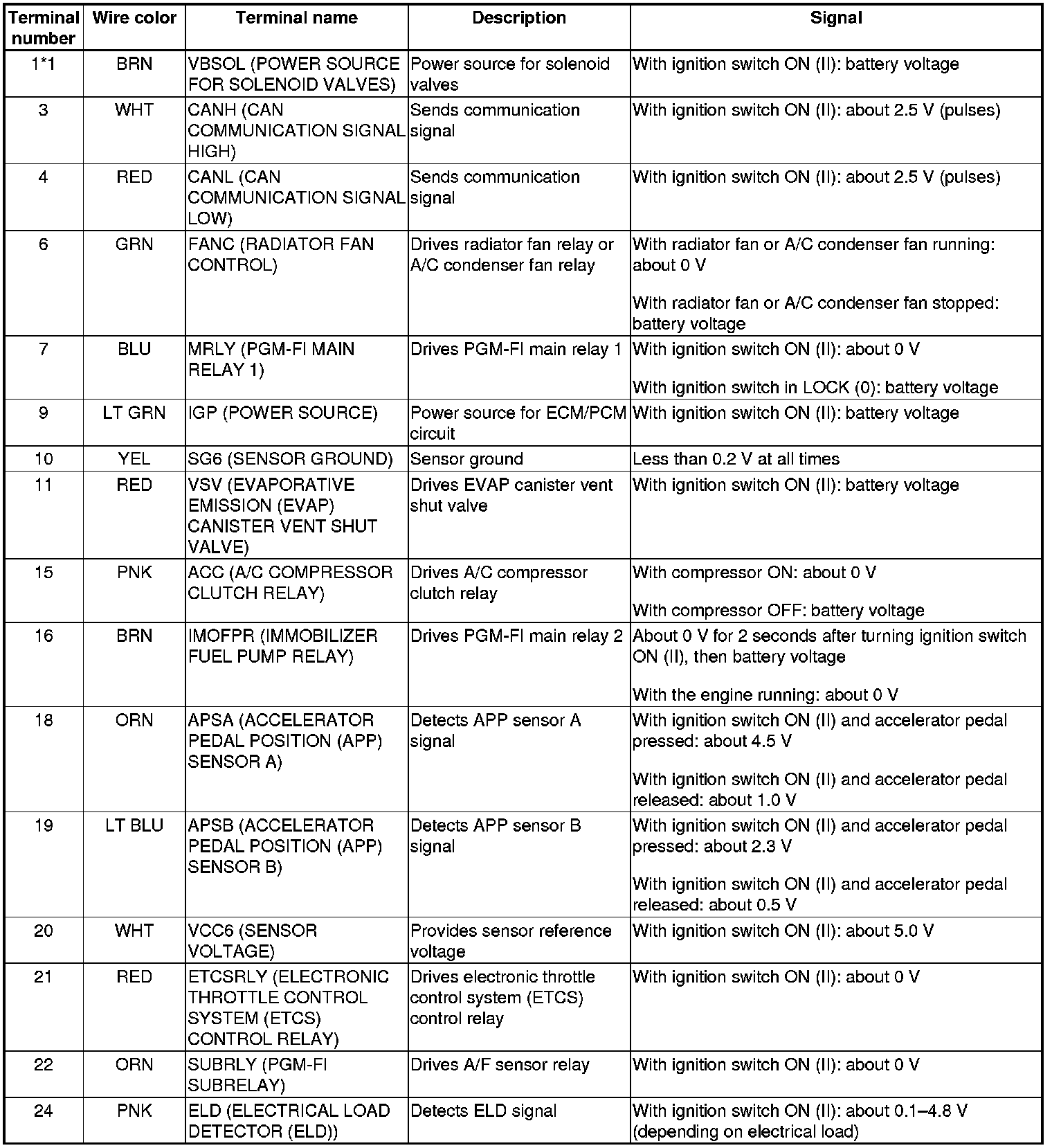

ECM/PCM Inputs and Outputs at ECM/PCM Connector C ((circle)) (49P)

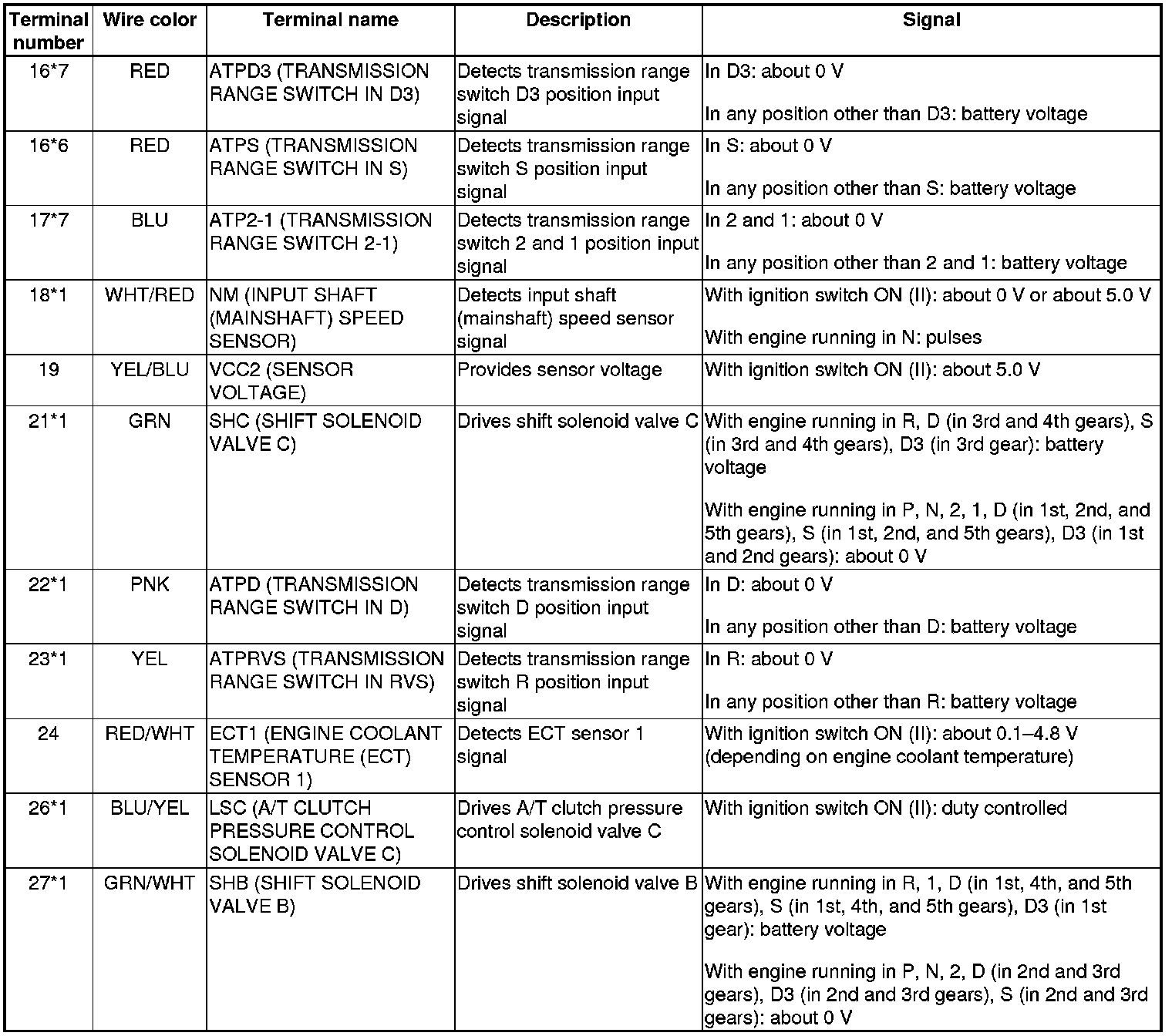

ECM/PCM Inputs and Outputs at ECM/PCM Connector C ((circle)) (49P)
