View 228 - A/T Gear Position Indicator Panel Light/Park Pin Switch/D3 Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

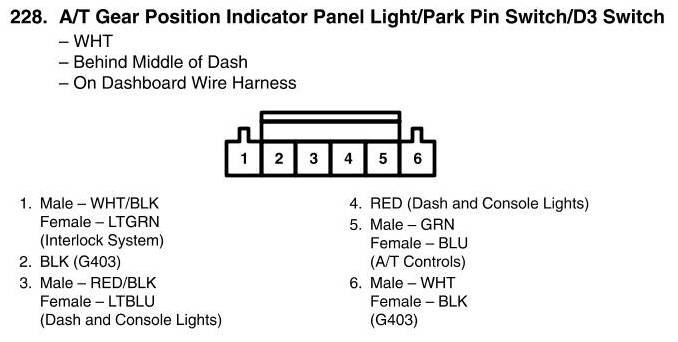

View 228 - A/T Gear Position Indicator Panel Light/Park Pin Switch/D3 Switch Connector View
