Main Relay (Computer/Fuel System)
>>
Locations
>>
PGM-FI System Component Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

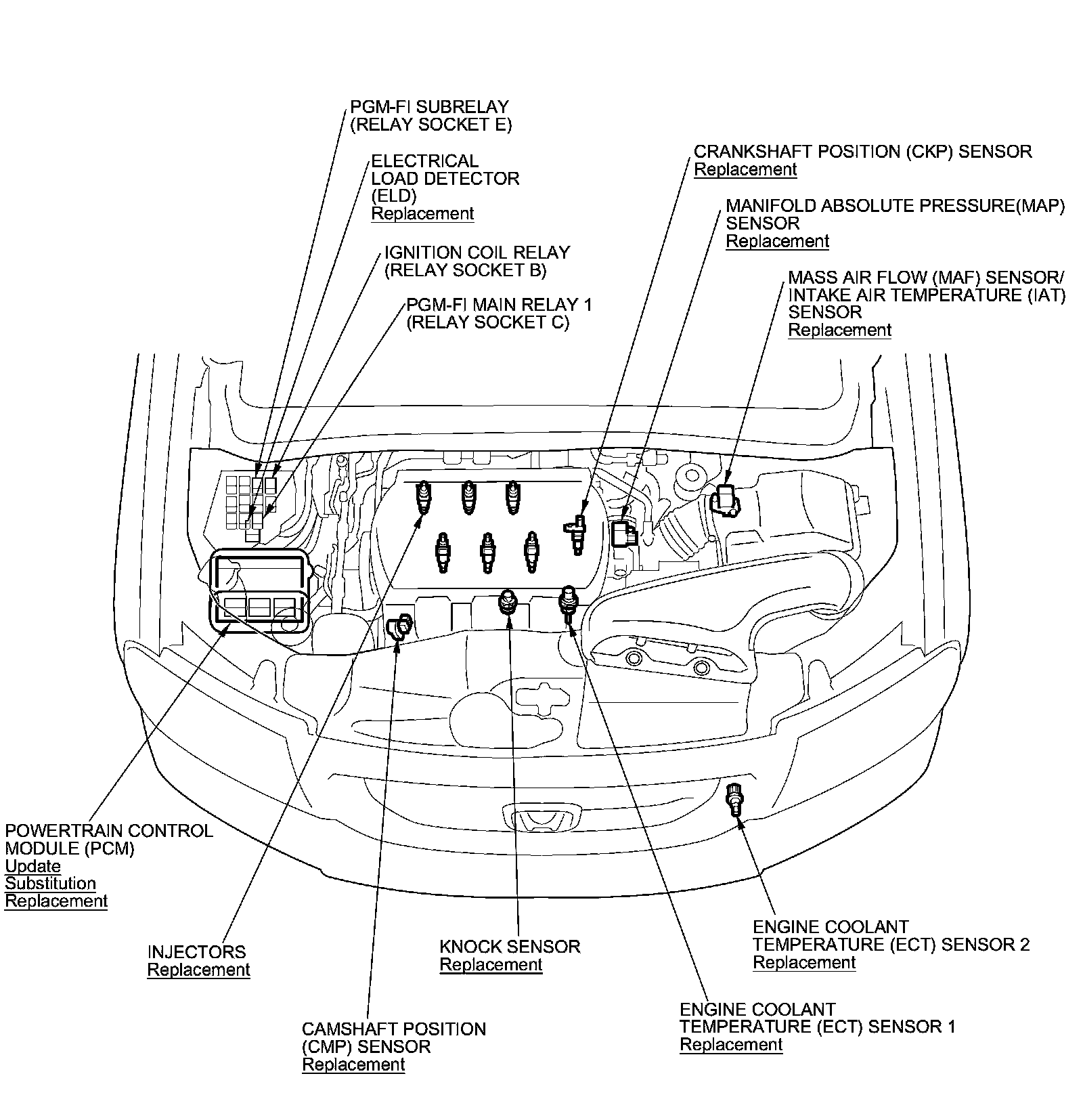

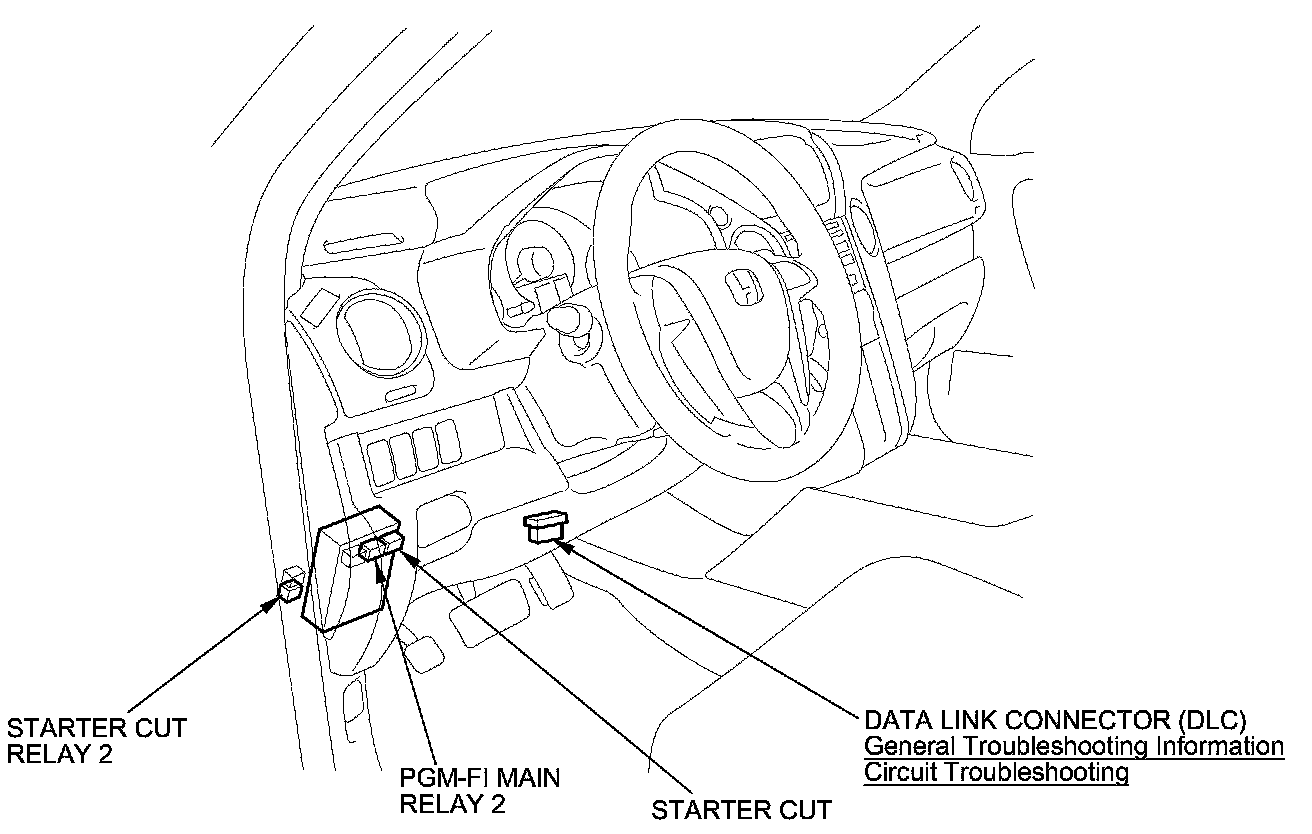

PGM-FI System Component Location Index
PGM-FI System Component Location Index
