Exploded View

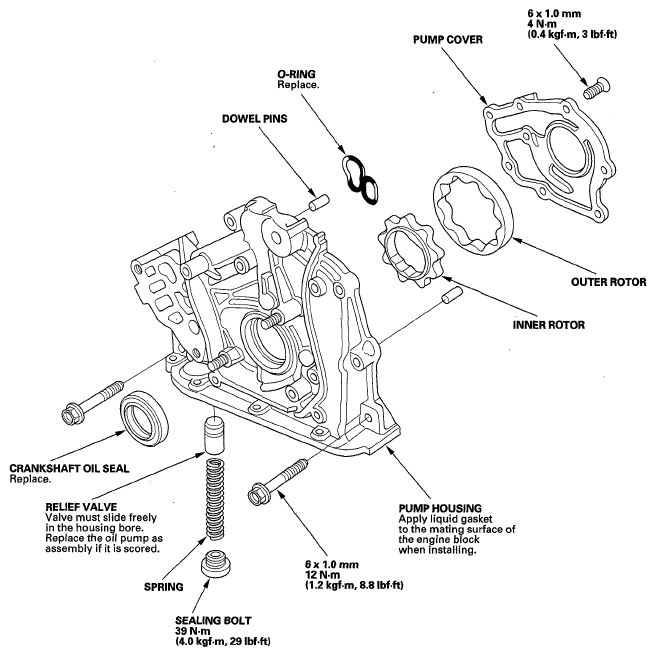

Fig 1: Exploded View Of Oil Pump Overhaul With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver, 64 mm 070AD-RCAA100
• Engine support hanger, A and Reds AAR-T1256
• Engine hanger adapter set VSB02C000024

  *Available through the Honda Tool and Equipment Program, 888-424-6827
