Key Interlock Solenoid Test

Key Interlock Solenoid Test

NOTE: SRS components are located in this area. Review the SRS component locations 4-door Locations, 2-door Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the steering column cover Service and Repair.

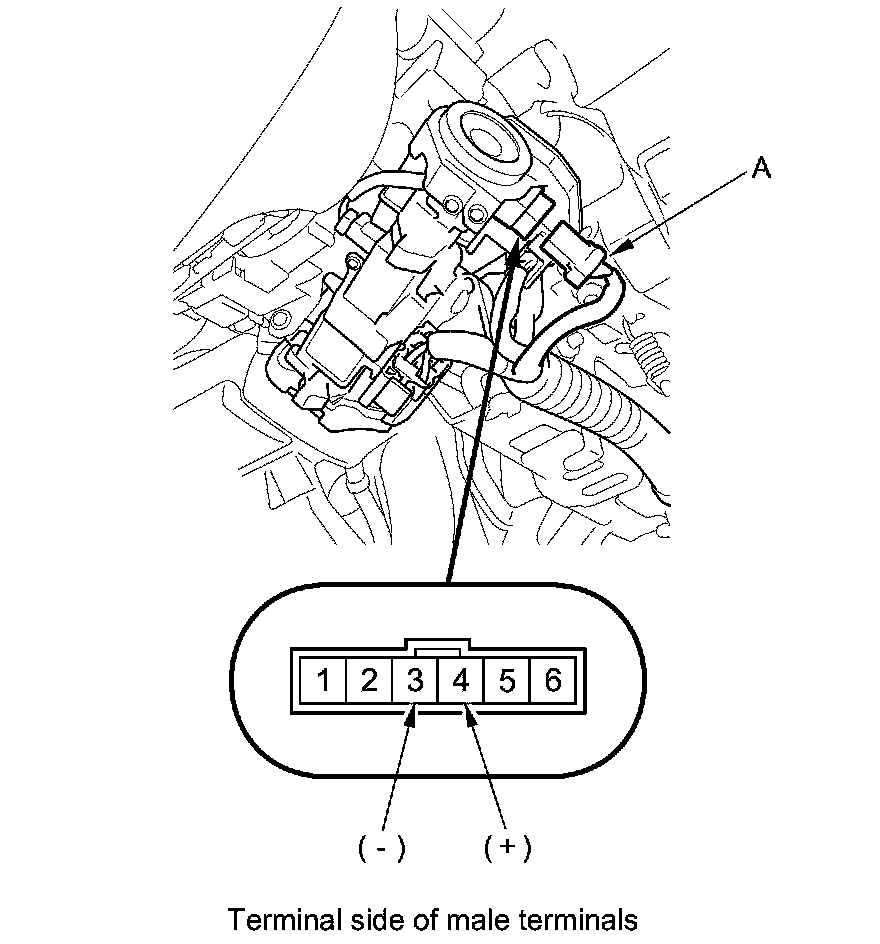

2. Disconnect the steering lock 6P connector (A).






3. Insert the ignition key in the key cylinder, then turn the ignition key to ACCESSORY (I).

4. Connect power to steering lock 6P connector terminal No. 4, and ground terminal No. 3. Check that the ignition key cannot be turned to LOCK (0). Disconnect power, and check that the key can be turned to the LOCK (0) position and removed from the cylinder.

5. If the key interlock solenoid works improperly, replace the ignition key cylinder/steering lock Service and Repair.
