Ignition Key Switch Test

Ignition Key Switch Test

NOTE: SRS components are located in this area. Review the SRS component locations 4-door, 2-door, and precautions and procedures before doing repairs or servicing.

1. Remove the steering column upper and lower covers.

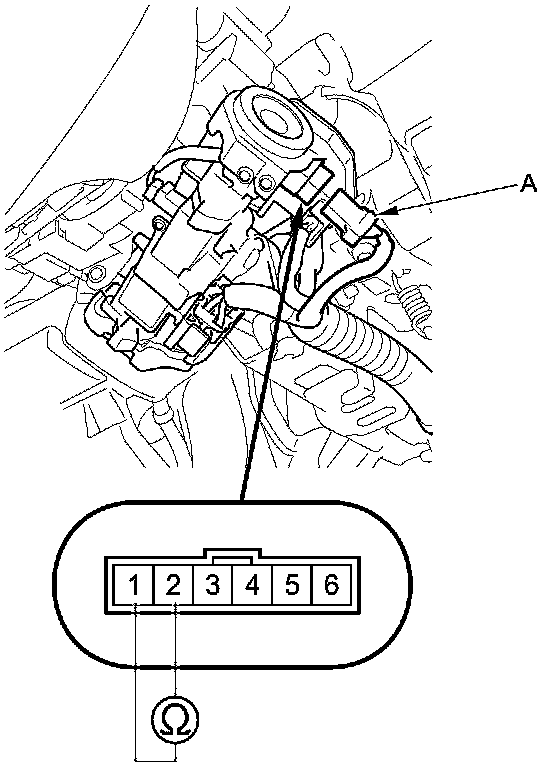

2. Disconnect the 6P connector (A).





3. Check for continuity between terminals No. 1 and No. 2.

- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed.

4. If the continuity is not as specified, the ignition key switch is faulty; replace the steering lock.
