Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector Driver Module (CNG)
>>
Injector Control Module Connector View (GX)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

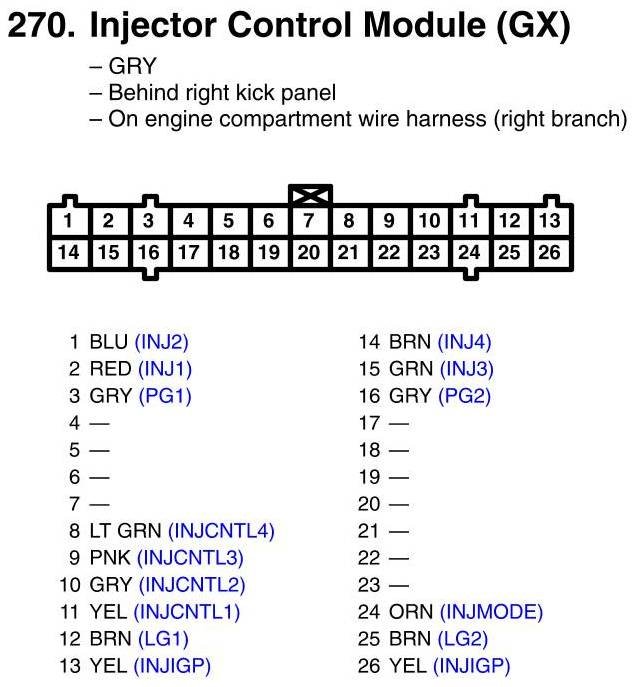

Injector Control Module Connector View (GX)
