Fuel Injector Driver Module (CNG): Service and Repair

Injector Control Module Replacement

1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal/Installation.

2. Remove the right kick panel Service and Repair.

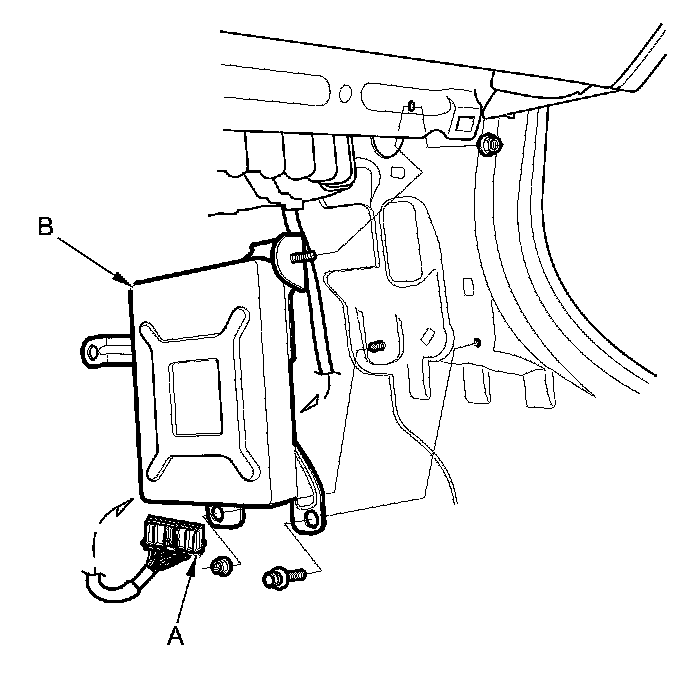

3. Disconnect the injector control module connector (A).





4. Remove the injector control module (B).

5. Install the parts in the reverse order of removal.
