Pinout Values and Diagnostic Parameters
Fuel and Emissions System Description - Electronic Control System

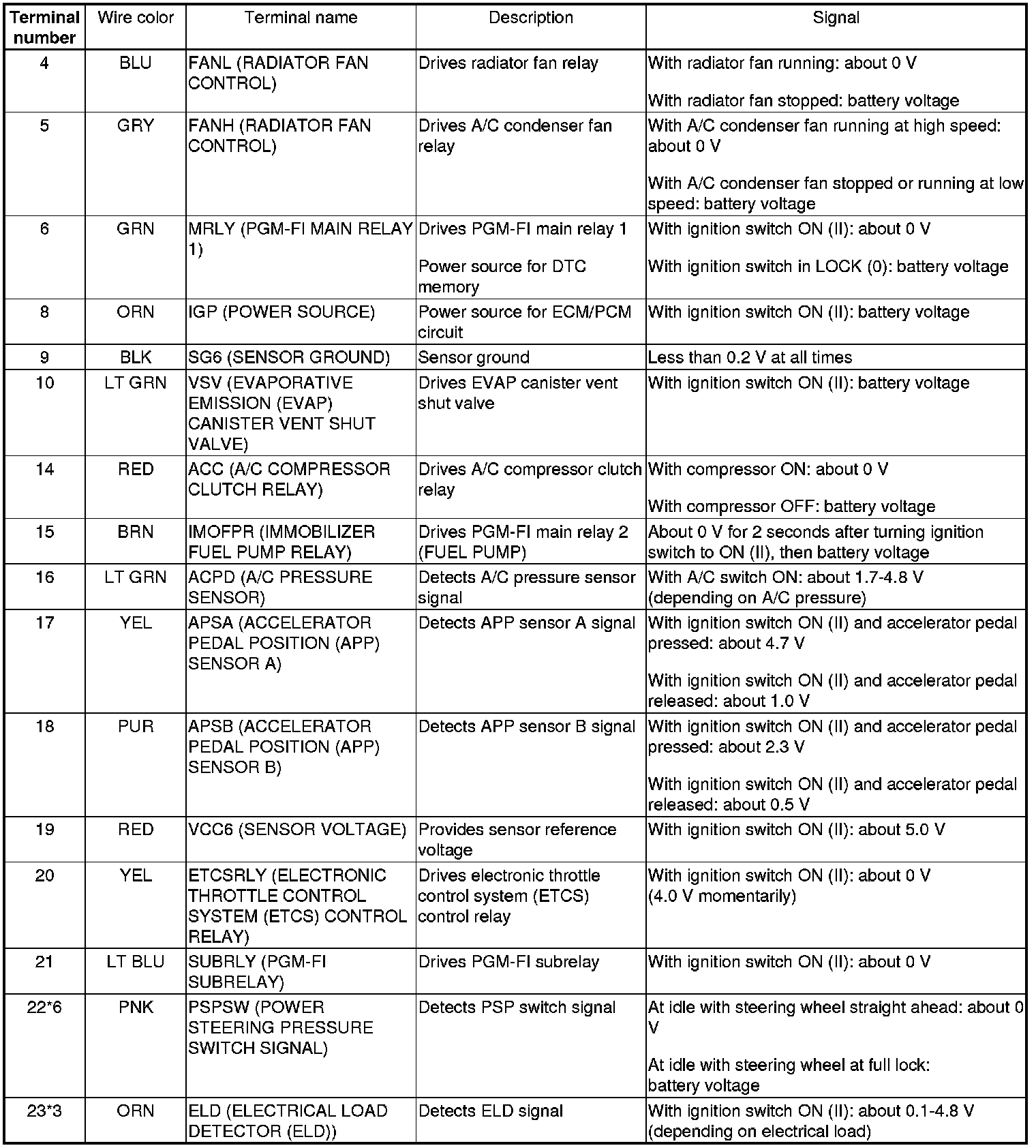

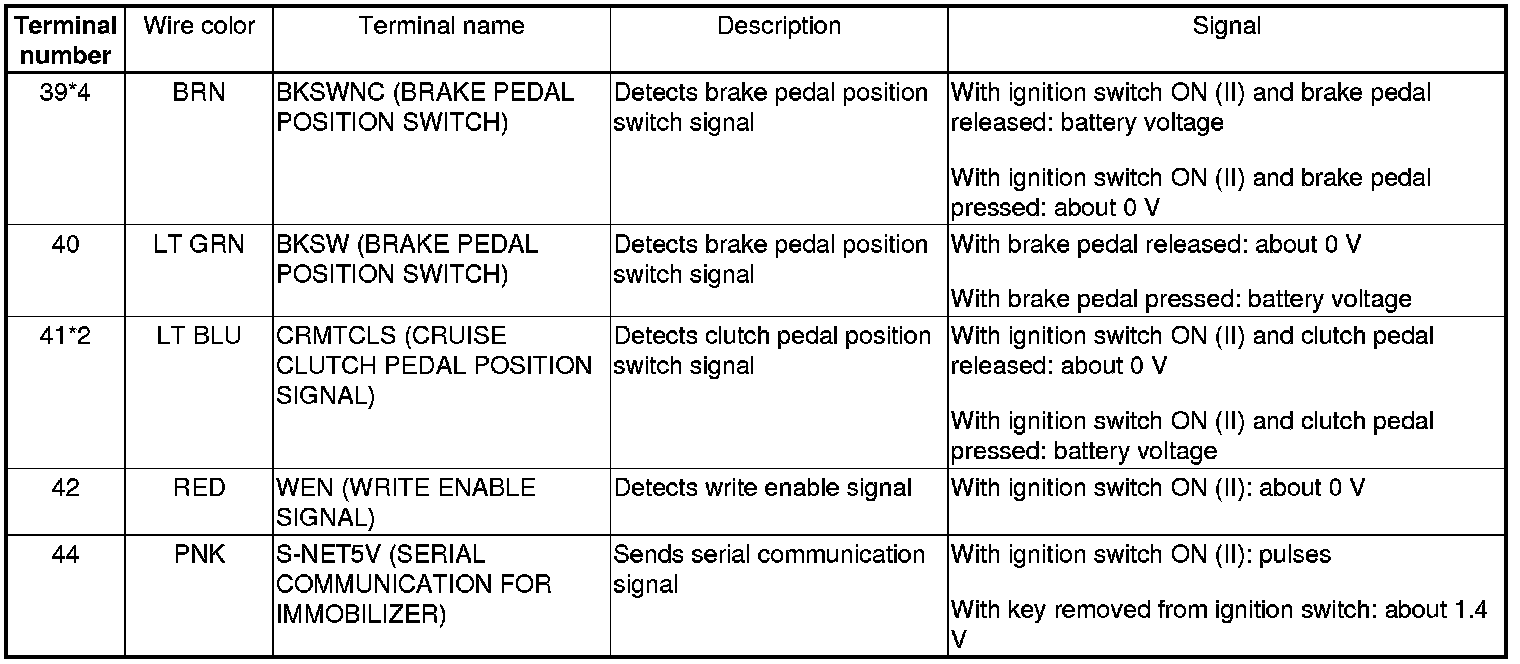

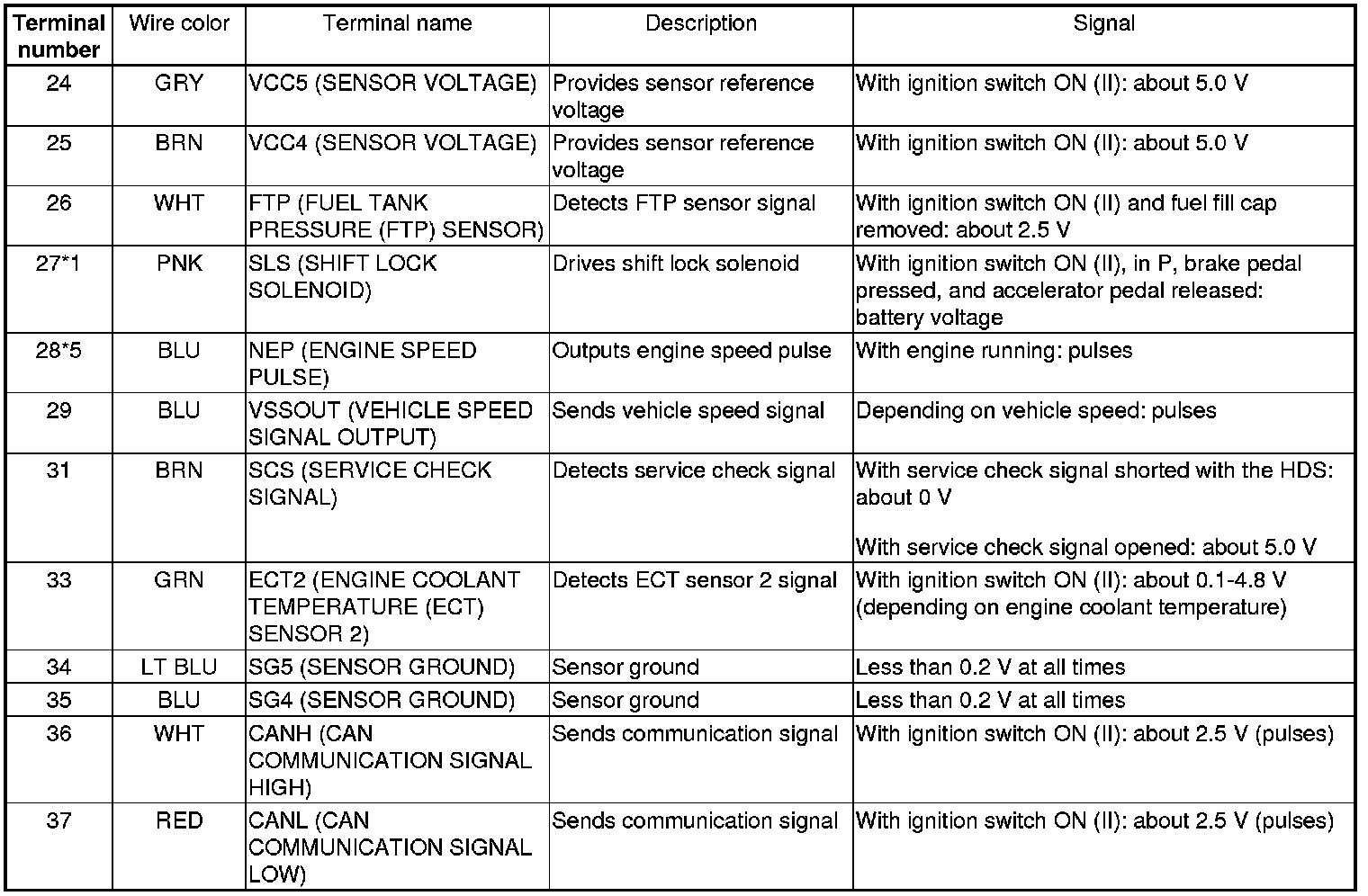

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (44P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (44P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (44P)

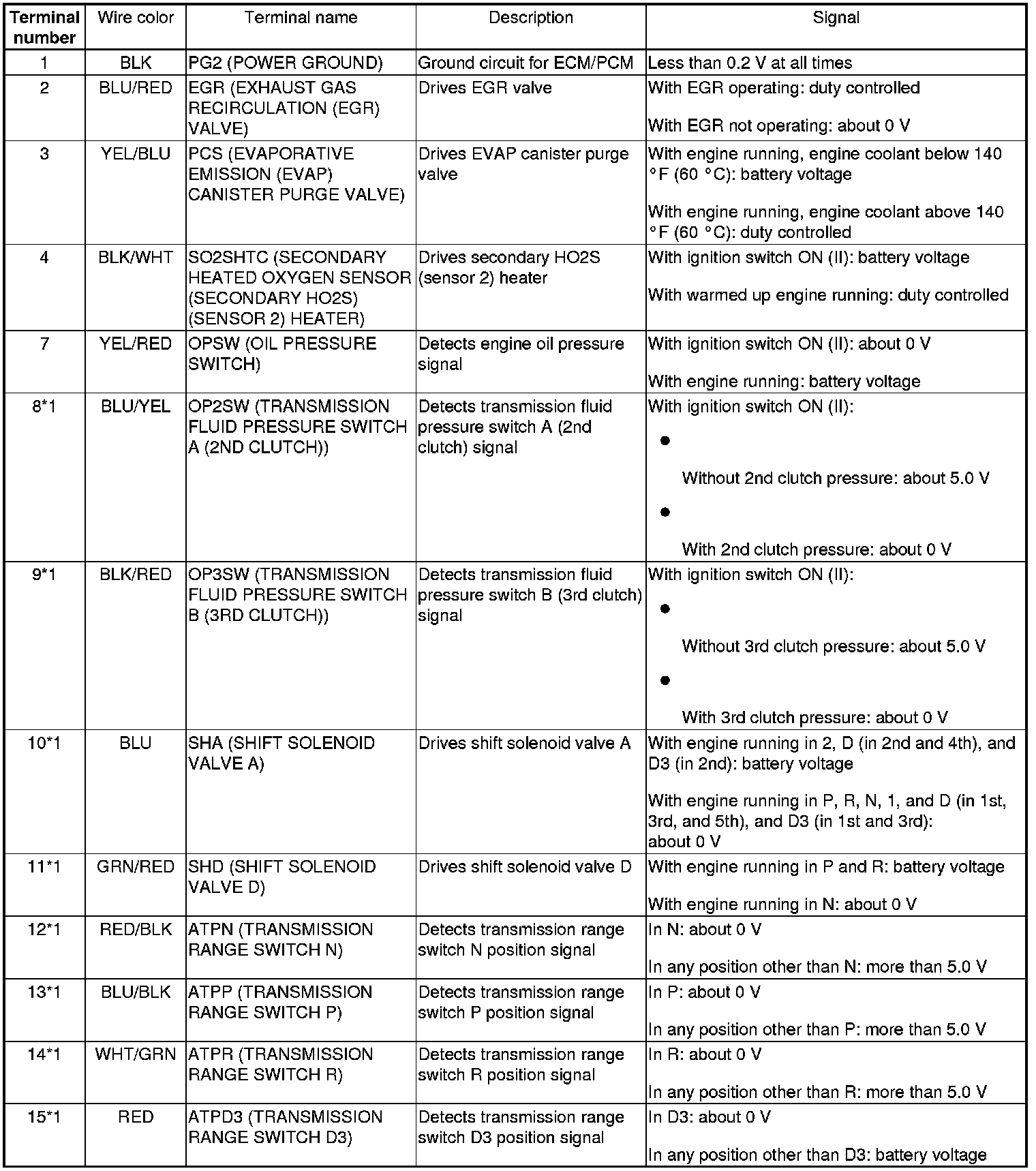

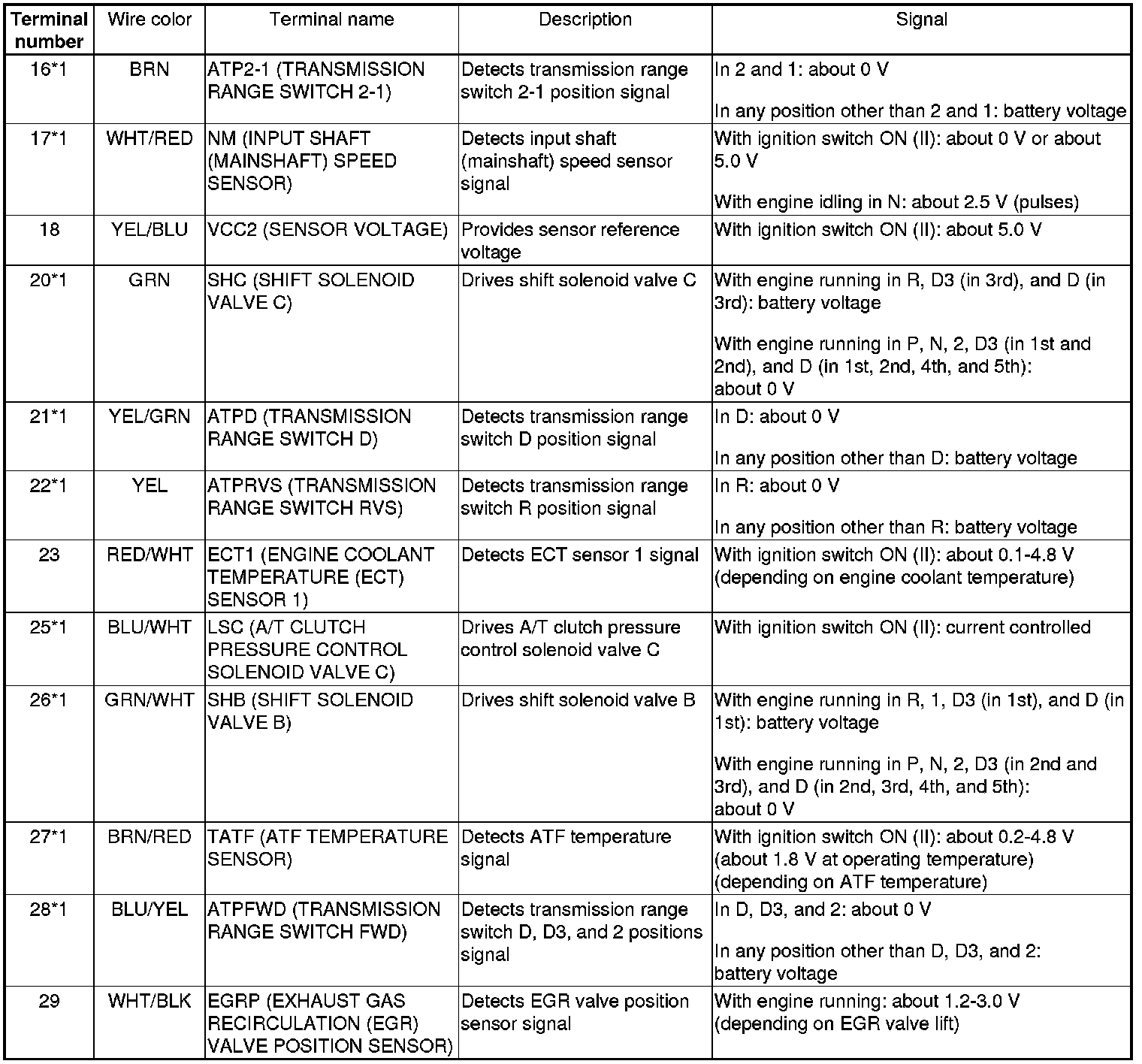

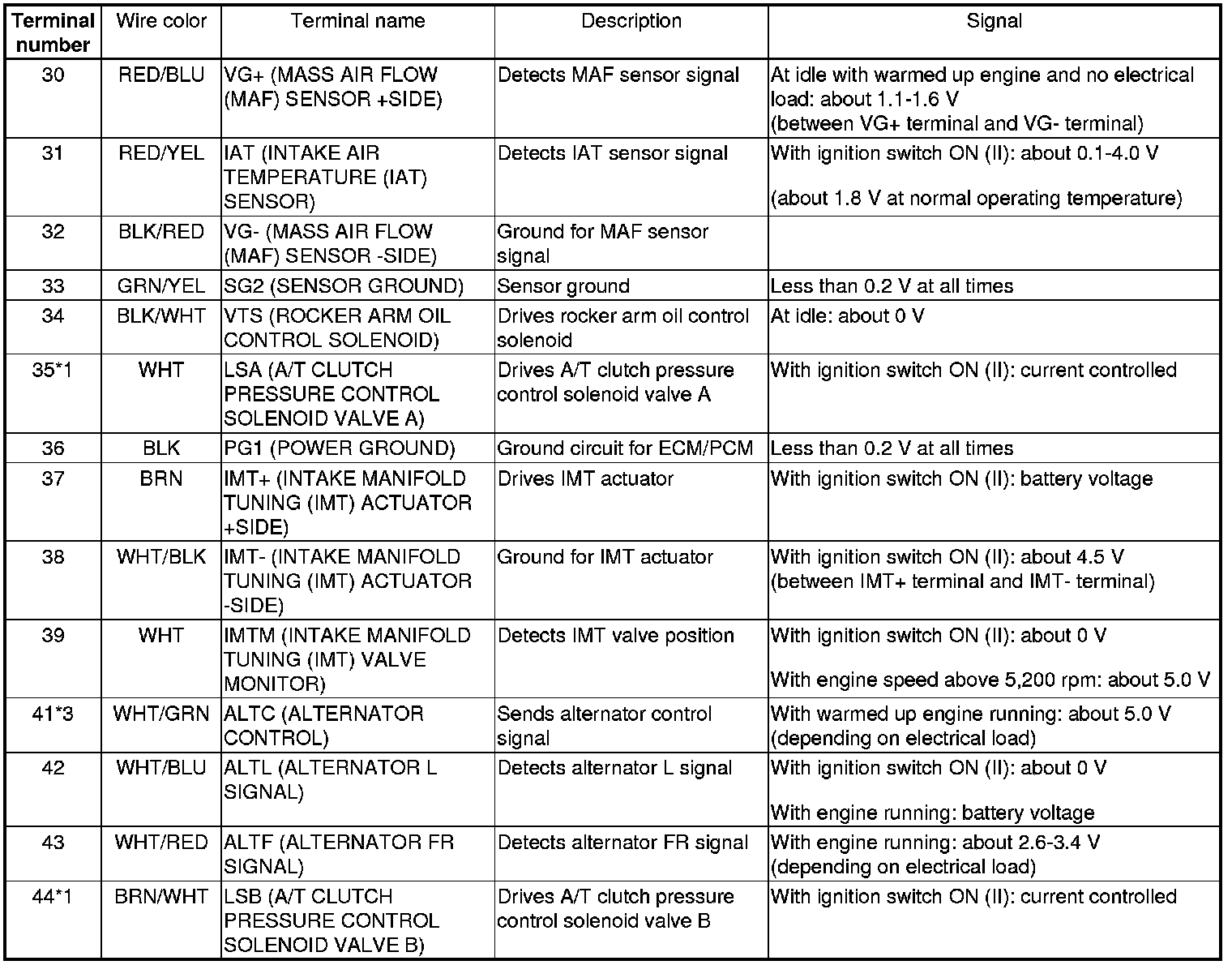

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (44P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (44P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (44P)

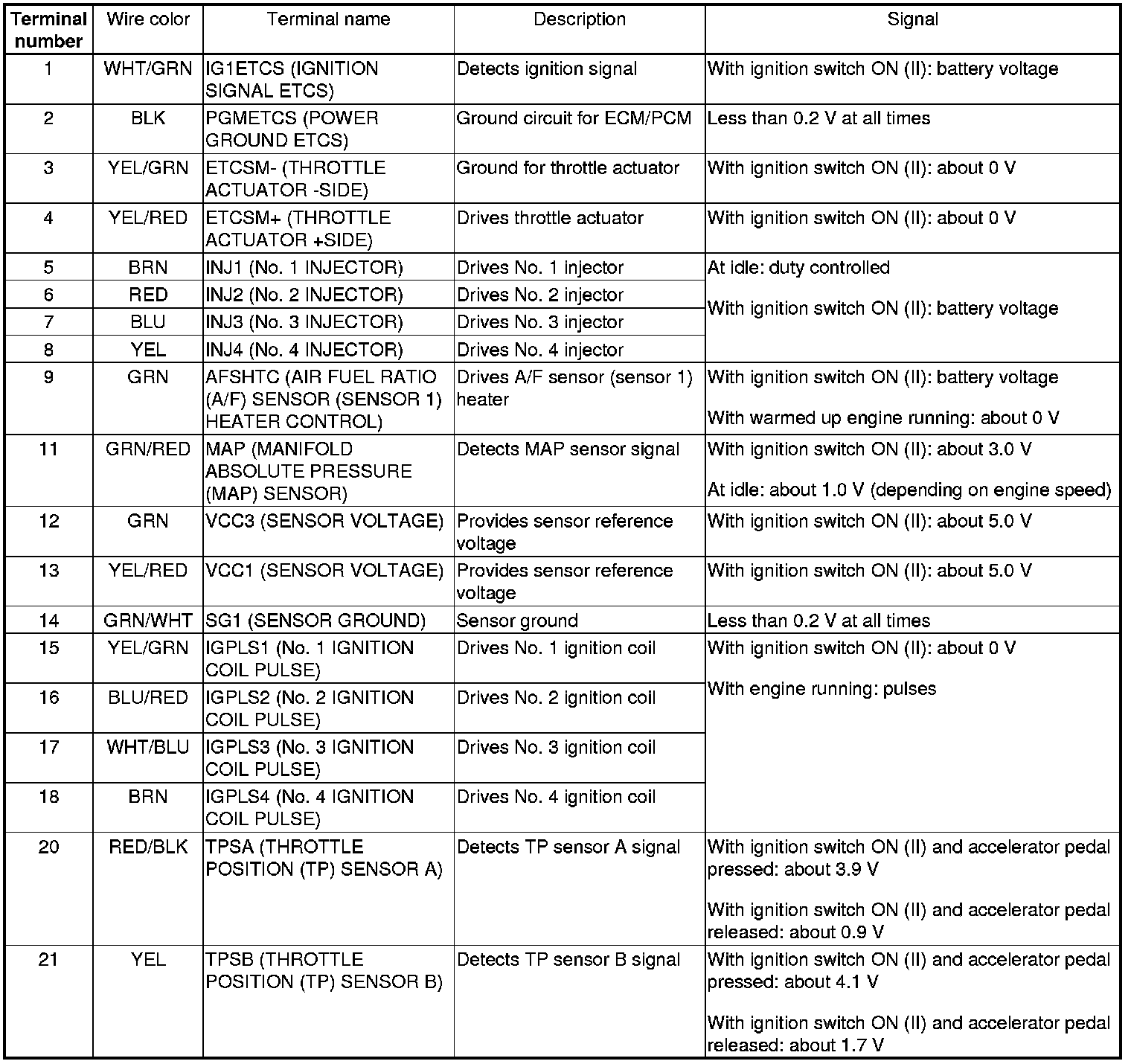

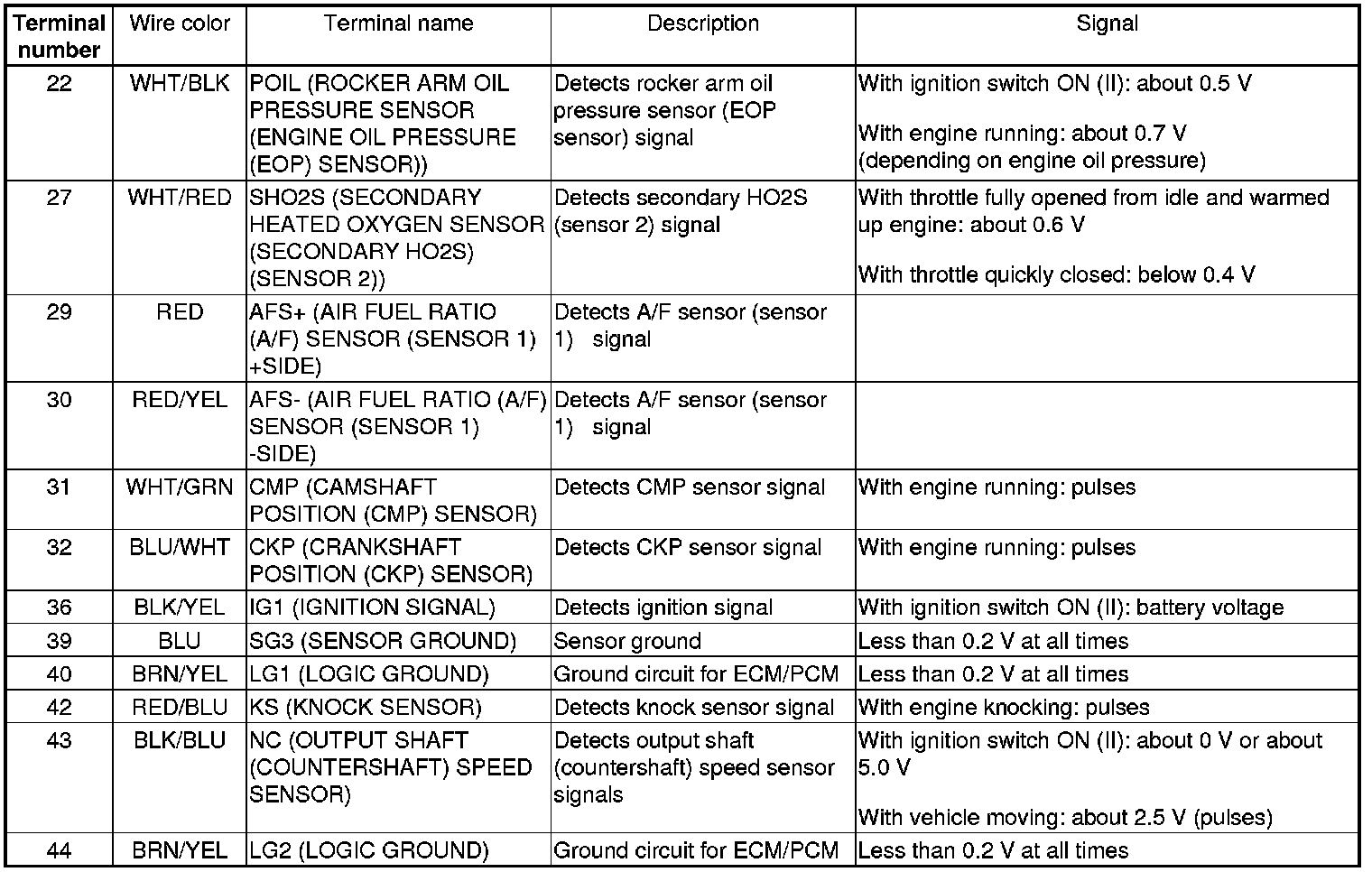

ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (44P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (44P)
